Bosch TPS Sensor 0 280 122 001 (0280122001) Pinout & Wiring
1 connector · full pinout below

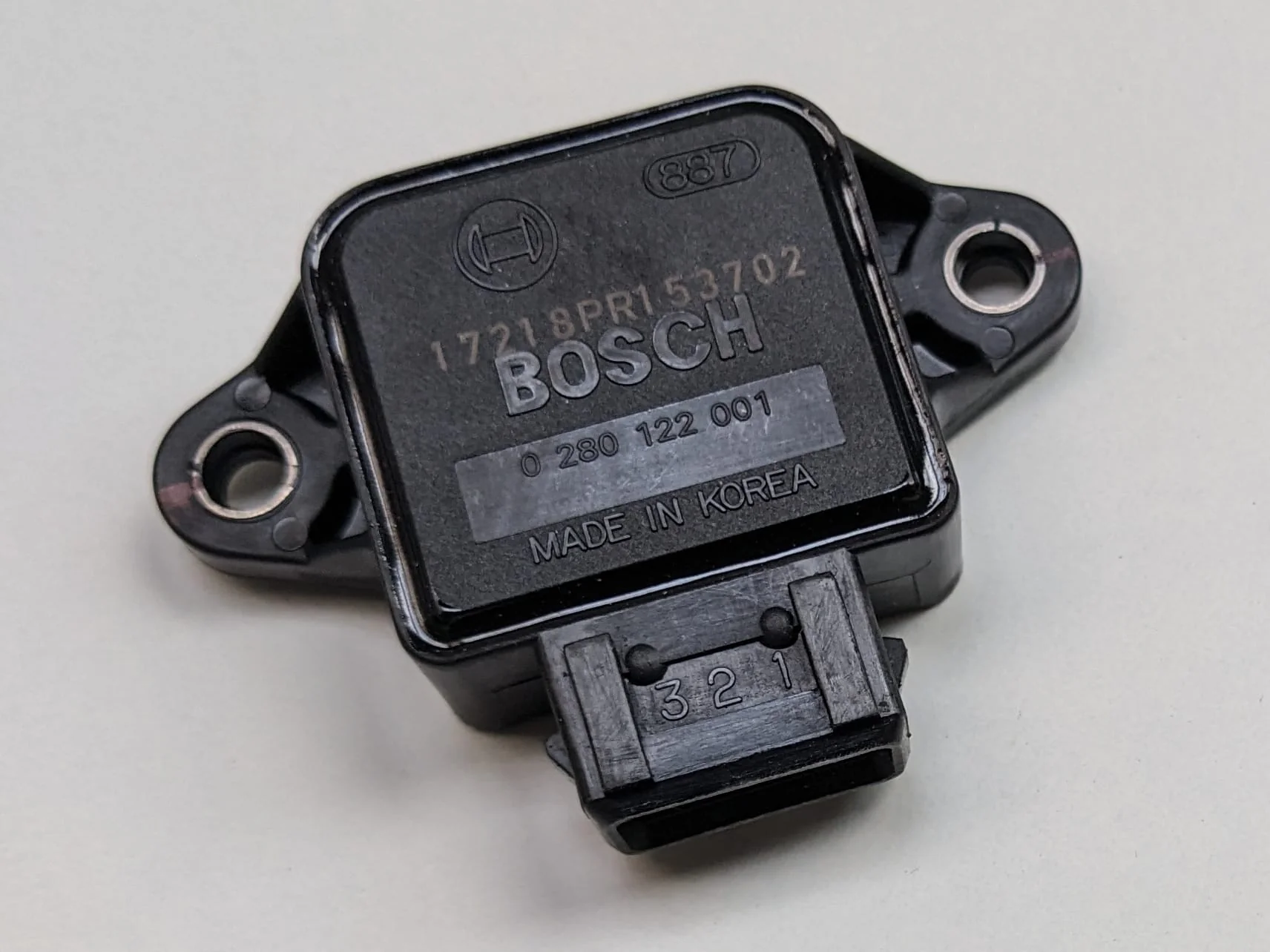

Bosch TPS sensor with the part number 0 280 122 001 (0280122001) commonly available
Connectors

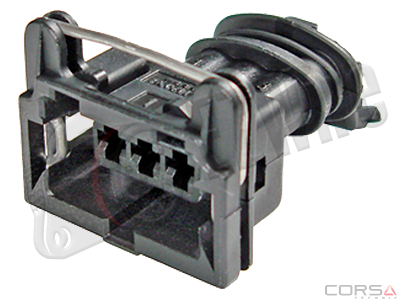

TE Connectivity282191-1- 3-way
| Pin | Function |
|---|---|
| 1 | Sensor Ground |
| 2 | +5V |
| 3 | TPS Signal |
Always verify the pinout against the manufacturer datasheet before wiring.
