See Our Wire Harness Software in Action - Updated March 2026
Design Fast
Keyboard-first interface. No excessive clicking through menus.
Catch Errors Early
Real-time validation stops mistakes before they happen.
Export Ready
Professional BOMs and cut lists generated automatically.

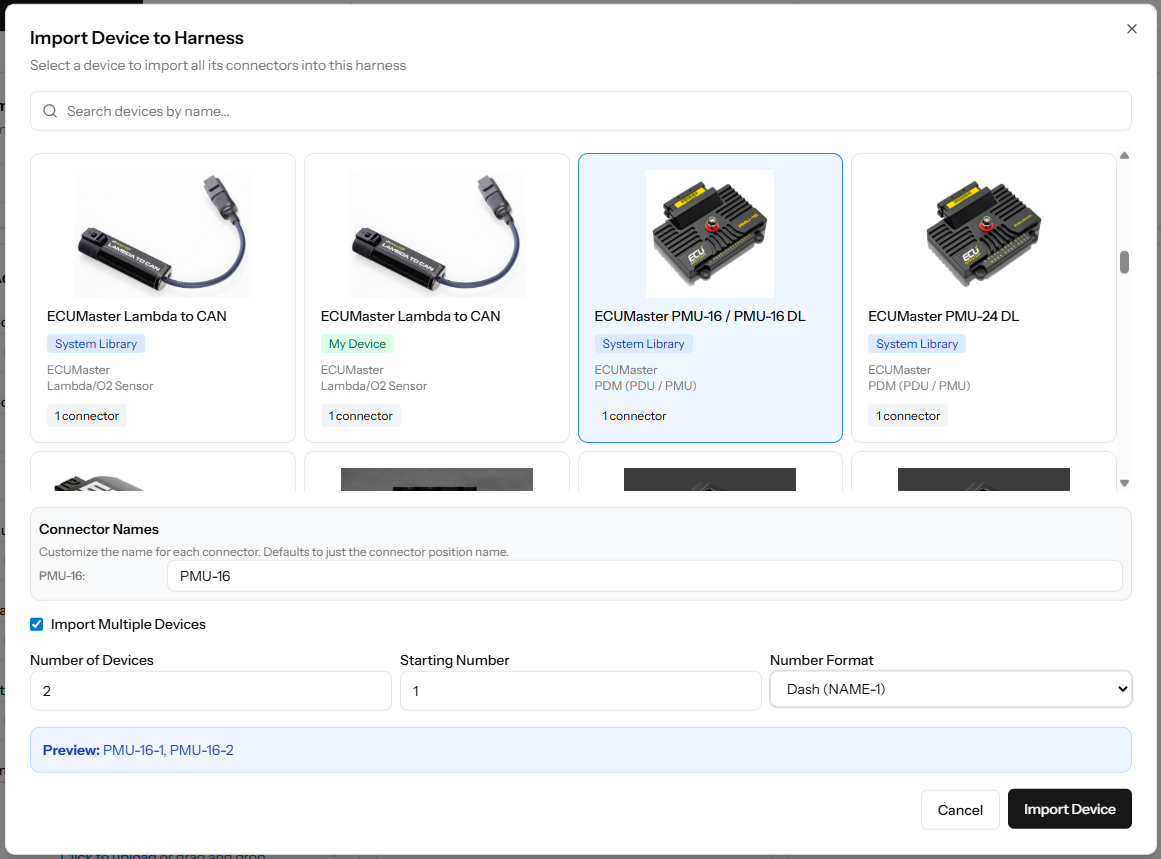

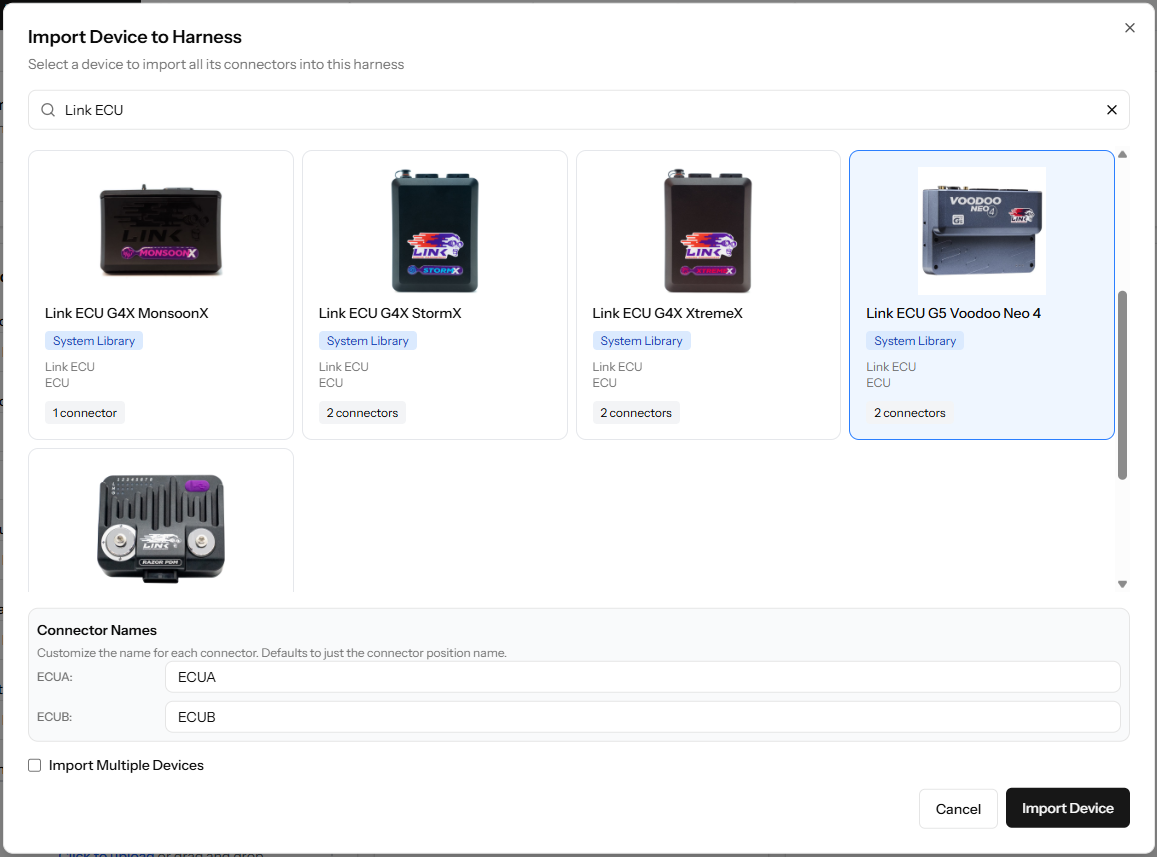

Import Pre-Configured Devices and Pinouts in One Click
EZ Wire's device library has 90+ pre-configured ECUs, PDMs, sensors, and more from manufacturers like MoTeC, Link ECU, Haltech, ECUMaster and more. Import complete pinout configurations instantly - no manual data entry.
New devices are added every week by EZ Wire and our community.
How Our Harness Design Tool Improves These 3 Critical Areas
Accuracy & Validation
Real-time error checking catches duplicate pins, wire color conflicts, and connection mistakes before you waste wire and time.
Speed & Efficiency
Keyboard-first design with automated BOM generation and cut lists. Export in minutes what used to take hours in Excel.

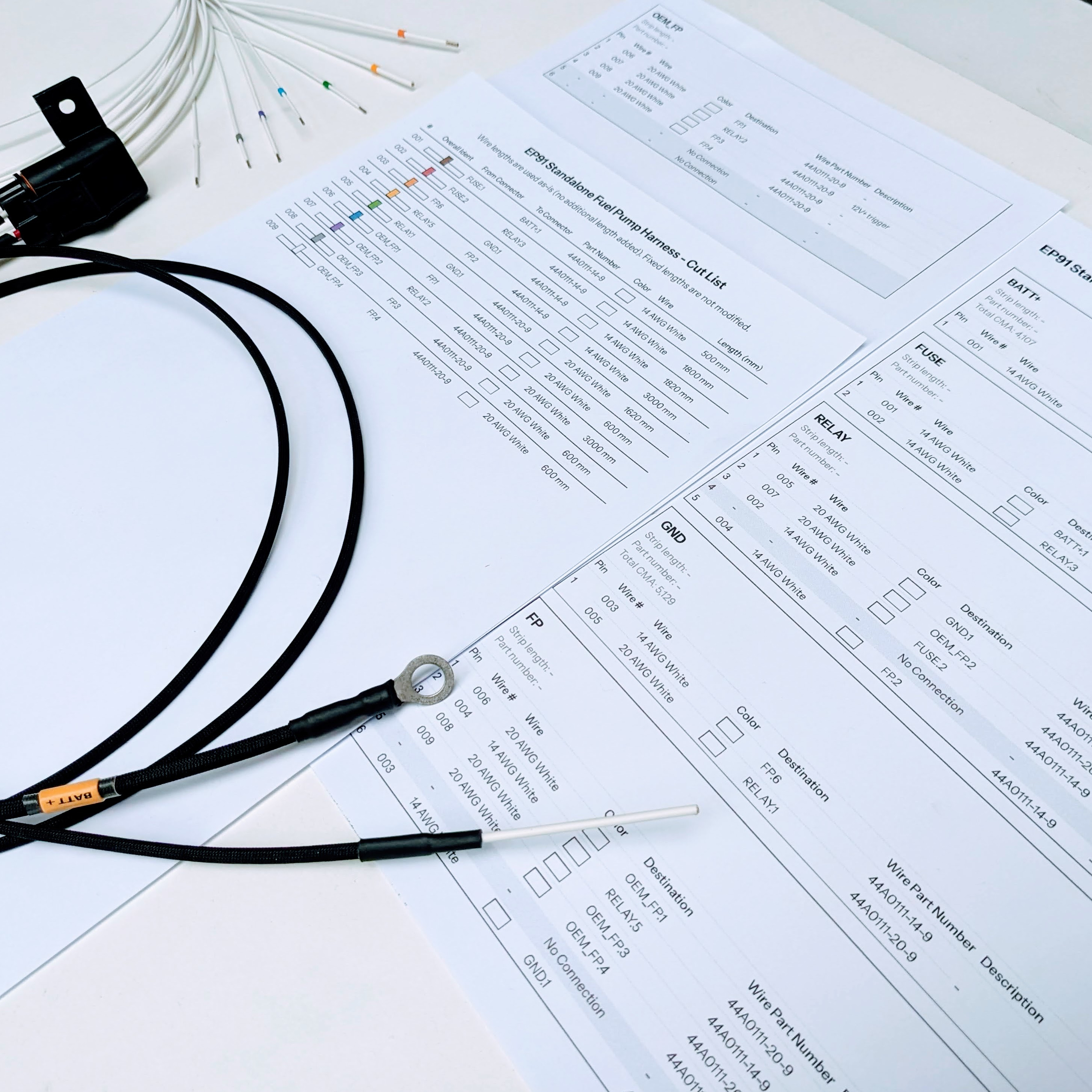

Professional Output
Production-ready pinout sheets and cut lists without any manual formatting.

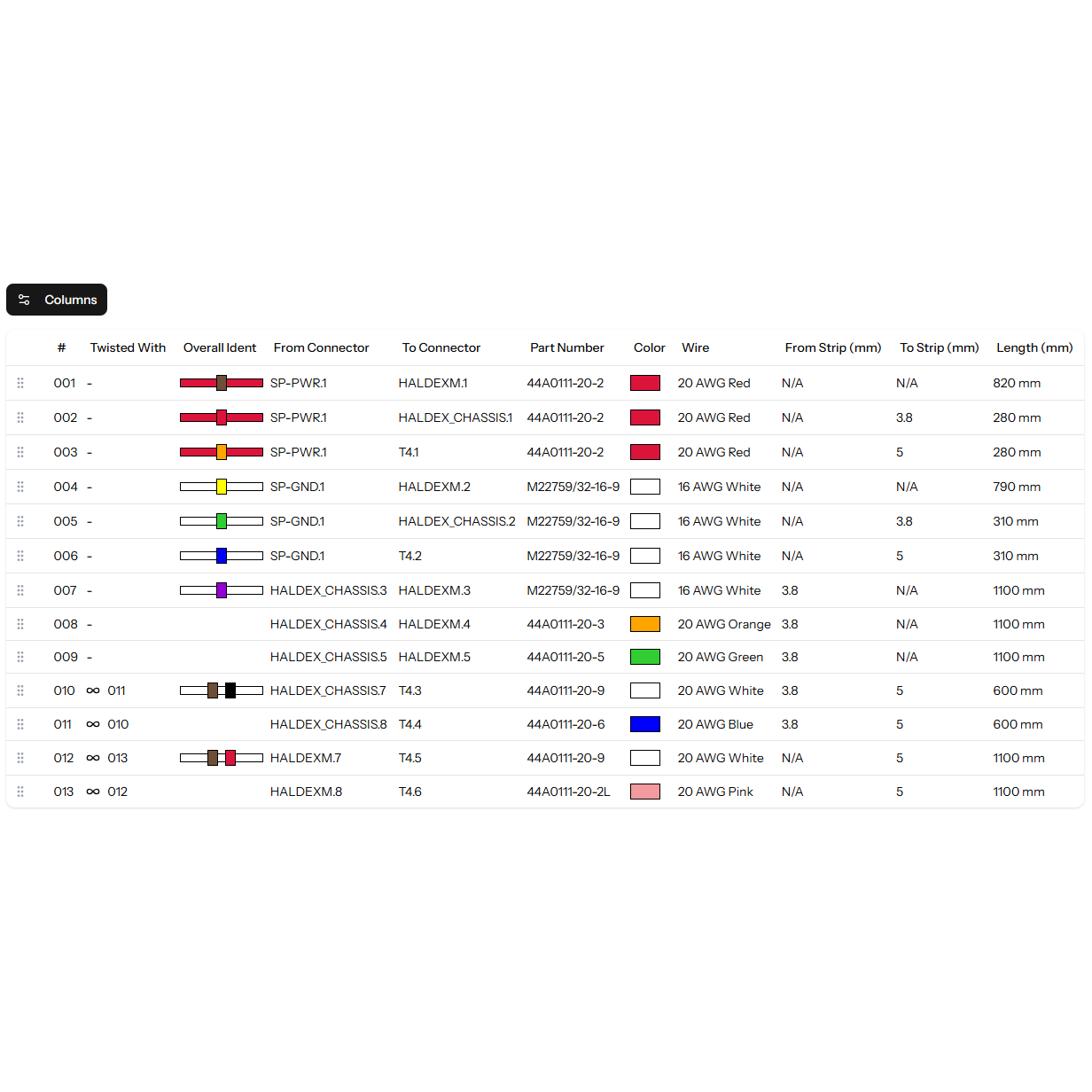

Production-ready cut list with calculated wire lengths, color idents, and twisted pair identification
If You're Still Using Spreadsheets, You Know the Pain:
"Forgetting to update both sides of a connection when making changes"
- Common spreadsheet frustration
"Hours lost to manual formatting and copying data between tabs"
- Professional harness builder
"Too slow - way too much clicking around"
- Builder on competitor software
During the EZ Wire beta, we surveyed 89 professional and semi-professional harness builders. 57% still use spreadsheets because existing software is either too expensive, too complex, or both. See how EZ Wire compares to spreadsheets →

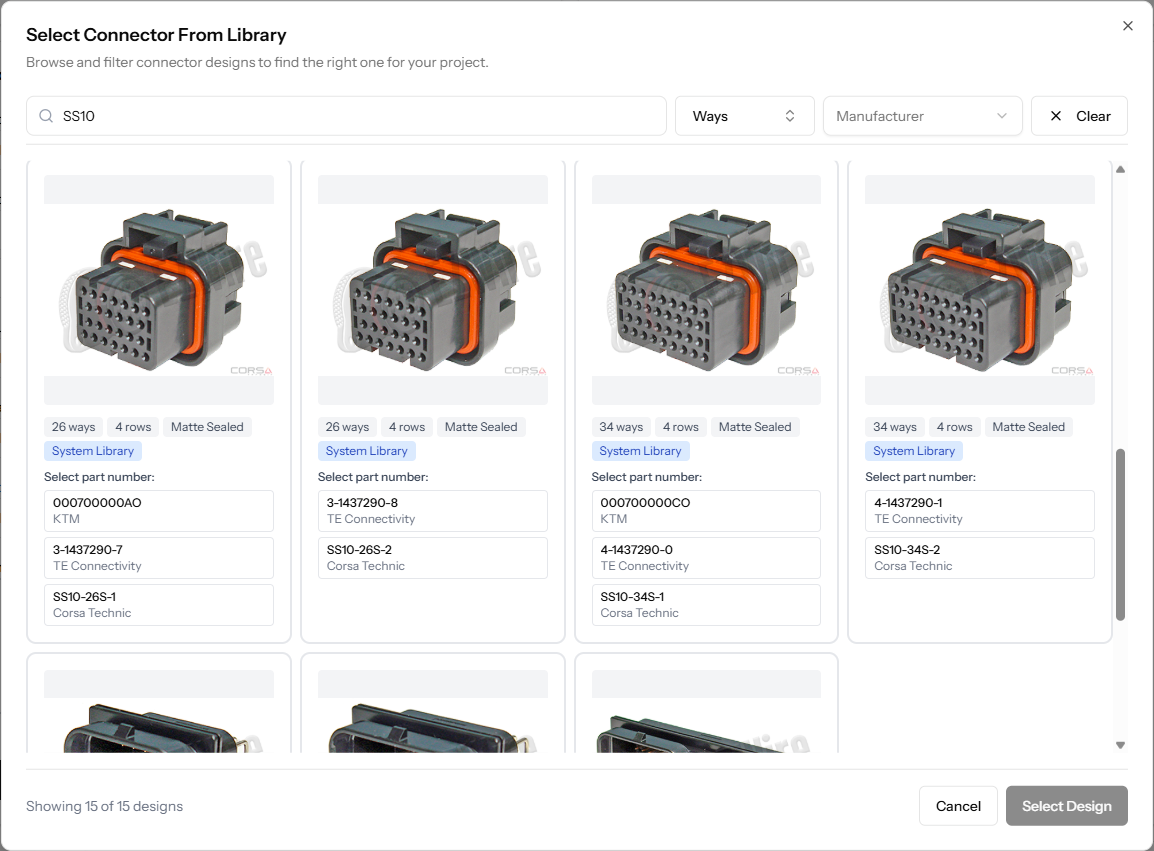

1,350+ Connector Designs at Your Fingertips
Our connector library is powered by Corsa Technic LLC, specialists in hard-to-source automotive connectors for motorsport and aftermarket applications.
Created By Someone Who Actually Builds Harnesses
I'm Stephen, founder of EP Wiring Limited
I've been a web developer since 2014 and building wiring harnesses since 2016.
I founded EP Wiring Limited in 2022.
Why I Built EZ Wire
I started developing EZ Wire in early 2023, then semi-abandoned it when we got too busy with actual harness work.
In 2024, we bought a Komax Gamma 311 cut/strip/terminate machine. We needed automated cut lists badly. We tried every major software option - all too expensive, slow or overly complicated. We didn't want to pay for bloat we'd never use. We wanted something simple, fast and easy to use.
So I built what I needed. We launched it in-house in May 2025 and used it for every harness we built. Every pain point in the software became a new feature. EZ Wire has come a long way since then.
The Research
During the EZ Wire beta, I surveyed 89 professional, semi-professional and hobbyist harness builders:
- 57% still use spreadsheets for harness documentation
- 47% desperately want visual diagram capabilities - now available in EZ Wire
- Most say existing software is too expensive ($200-300/month) or too complex
EZ Wire addresses what real builders actually need, at a price that makes sense for small shops.
Where We Are Today
- 180+ harnesses designed since May 2025
- 2+ years in development before launch
- Built and maintained by someone who uses it every day

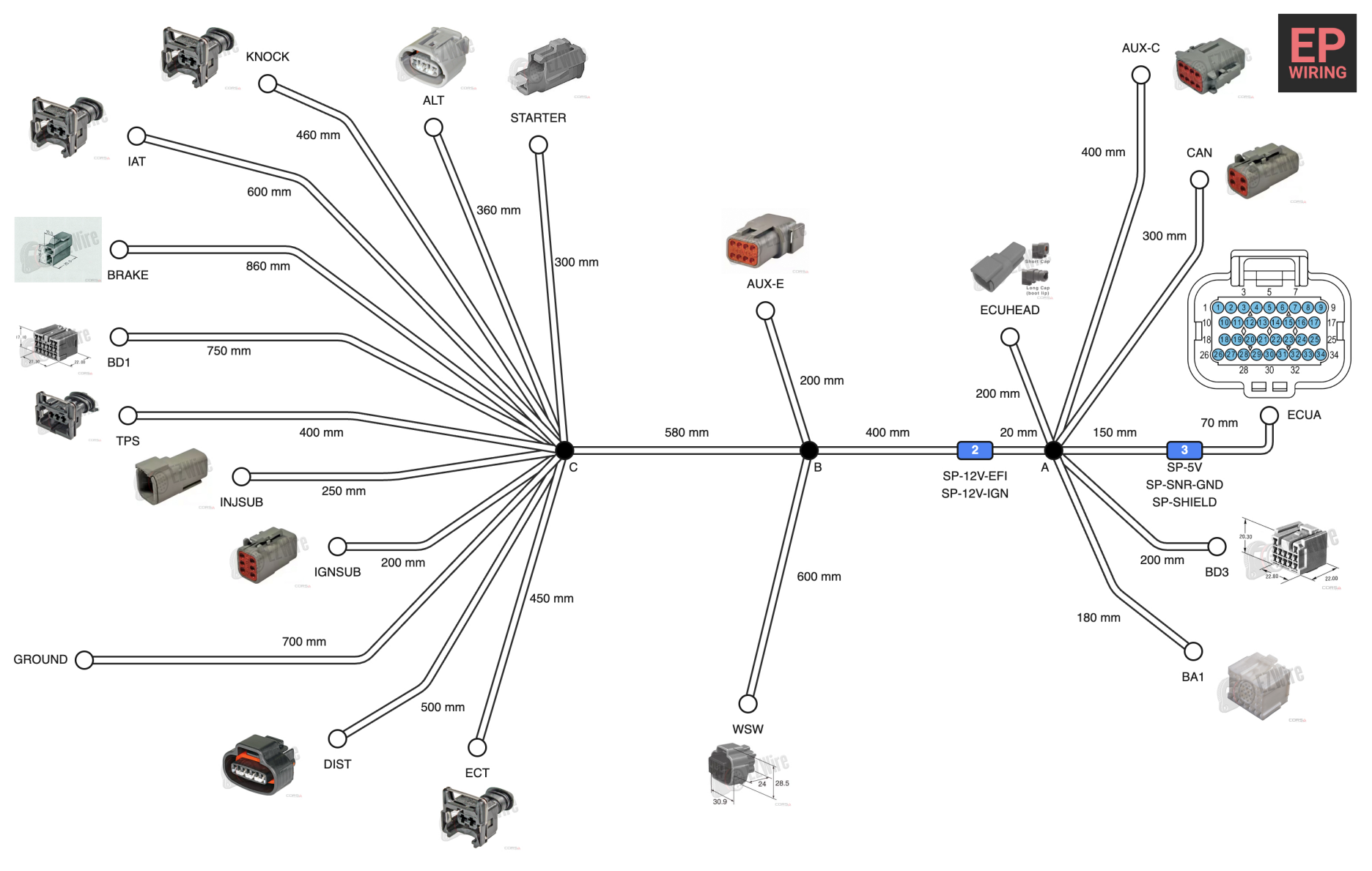

See Your Harness as a Visual Diagram
Drag connectors and branches into position, route lengths between them, and get a clear visual picture of how your harness is laid out.
- Drag-and-drop connectors and branches to design the harness layout
- Connector images shown directly on the diagram for quick identification
- Included in every plan at no extra cost
Everything You Need to Build Professional Harnesses
Visual Harness Diagram
See your harness as a visual diagram. Drag connectors and branches into position, route lengths between them, and get a clear visual picture of how your harness is laid out.
Connector Design Library
Select from one of the 1,350+ designs with 5,500+ part numbers or create custom connector designs once, reuse across all harnesses. Save time and ensure consistency.
Device Library
Create reusable device templates with multiple connectors and cavity descriptions. Define ECUs, sensors, and devices once, then import all connectors into any harness with a single click.

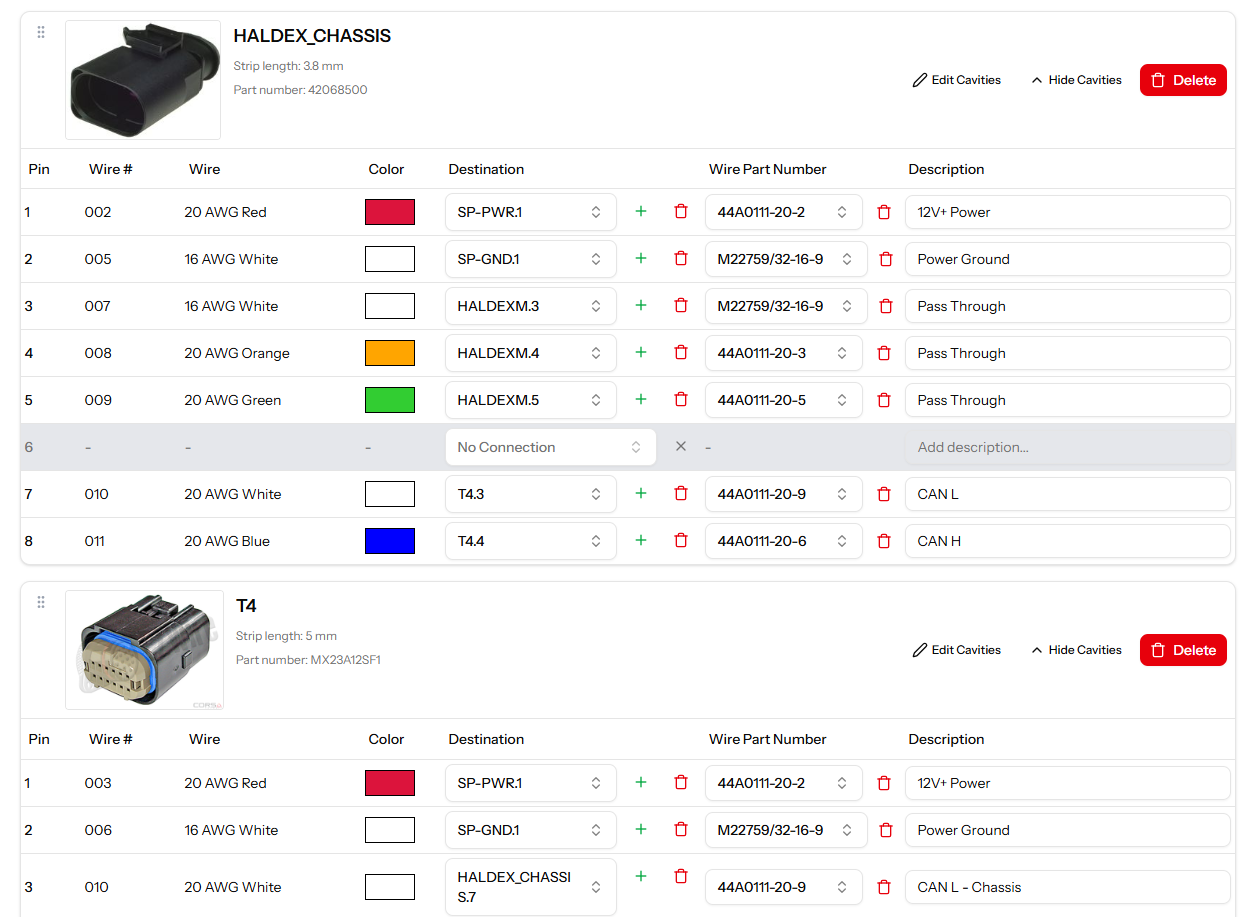

Real-Time Connection Validation
Each connection is validated as you work. No need to worry about duplicate pins, invalid wire colors and other connection errors.
Automated Cut Lists & BOMs
Export professional pinout sheets and cut lists with one click. Calculations include branch lengths and your flexible additional lengths for straight lay or concentric twisted harnesses.
Wire Idents System
Color-coded wire identification. Mark wires with up to 5 color bands in 3 locations.
Keyboard-First Design
Built for speed. Navigate and design with keyboard shortcuts. No endless clicking through menus.
Simple, Transparent Pricing
Now with a DIY plan for personal projects - from $18.00/month.
Professionals get started from $107.50/month.
DIY
Personal & non-commercial use only
Billed monthly
$216 billed annually
14-day money back guarantee if exports unused
SHOP
Billed monthly
$1,290 billed annually
14-day money back guarantee if exports unused
Pro
Billed monthly
$2,150 billed annually
Advanced features for professionals
14-Day Money Back Guarantee
Try EZ Wire risk-free for 14 days. Get a full refund if you haven't exported any wiring harness data.
*Guarantee is forfeited once harness data is printed or exported
More Wire Harness Design Features
Wire Specifications
Complete wire gauge library with support for AWG, metric and SAE standards.
Secure Cloud Storage
Your designs are automatically backed up and secure in the cloud.
Regular Updates
New features and improvements released regularly based on user feedback.
What's New
Add in-app billing cycle switching - change between monthly and yearly billing on your current plan without having to cancel and re-subscribe
Add in-app subscription upgrades for DIY users - upgrade to SHOP Monthly or Yearly directly from the subscription settings page, with prorated billing applied immediately
Add the ability to pause and resume your subscription from the subscription settings page - pauses take effect at the end of the current billing period and can be resumed any time
What's Coming Next
Cut List Performance & CSV/Excel Export
ETA JUNE 2026SHOP & PROFaster cut list generation. CSV and Excel export formats for workshop and production use.
Multicore & Shielded Cables
ETA JUNE 2026Add support for multicore cables and shielded cables in your wiring harness designs with cut list integration.
Terminals, Seals & Cavity Plugs
ETA JULY 2026SHOP & PROManage terminals, seals, and cavity plugs as part of your connector configurations for complete Bill of Materials accuracy.
Harness Covering
ETA JULY 2026SHOP & PROHarness covering materials such as braid, DR-25, tape, and more. Intelligent auto-suggestions and rule-based selections streamline your workflow.
Connector & Branch Boots
ETA AUGUST 2026Add boots to connectors and branches for strain relief and environmental protection, fully integrated into your harness documentation.
Connector Locks & Accessories
ETA AUGUST 2026SHOP & PROManage connector locks and accessories as part of your connector configurations for accurate Bill of Materials and professional documentation.
Priority based on actual customer requests. See full roadmap →
Built By Builders, For Builders
Ready to Design Your First Harness?
Sign up for instant access. Export your first professional harness today.
Built for speed: Keyboard-first data entry for maximum accuracy, plus a visual diagram so you can see exactly how your harness is laid out.
