Bosch E-Throttle Body (44/54/60/68/74/82mm) Pinout & Wiring
1 connector · full pinout below
Suits Bosch 44 / 54 / 60 / 68 / 74 / 82mm electronic throttle bodies. Please confirm part numbers
Connectors

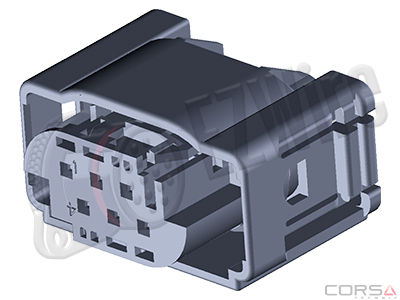

TE Connectivity1-967616-1- 6-way
| Pin | Function |
|---|---|
| 1 | Motor - |
| 2 | Sensor Ground |
| 3 | +5V Sensor Supply |
| 4 | Motor + |
| 5 | TPS 2 |
| 6 | TPS 1 |
Always verify the pinout against the manufacturer datasheet before wiring.
