Bosch LSU 4.9 - with automotive connector Pinout & Wiring
1 connector · full pinout below
Connectors

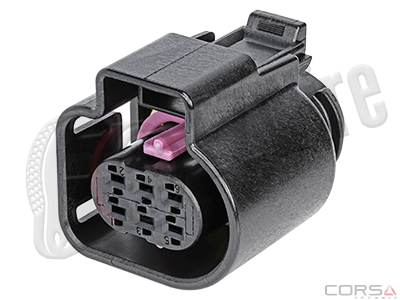

1 928 404 669- 6-way
| Pin | Function |
|---|---|
| 1 | Pump current APE / IP |
| 2 | Virtual ground IPN / VM |
| 3 | Heater voltage H- / Uh |
| 4 | Heater voltage H+ / Uh+ |
| 5 | Trim resistor RT / IA |
| 6 | Nernst voltage UN / RE |
Always verify the pinout against the manufacturer datasheet before wiring.
