Bosch · Sensor (Pressure / Temperature)

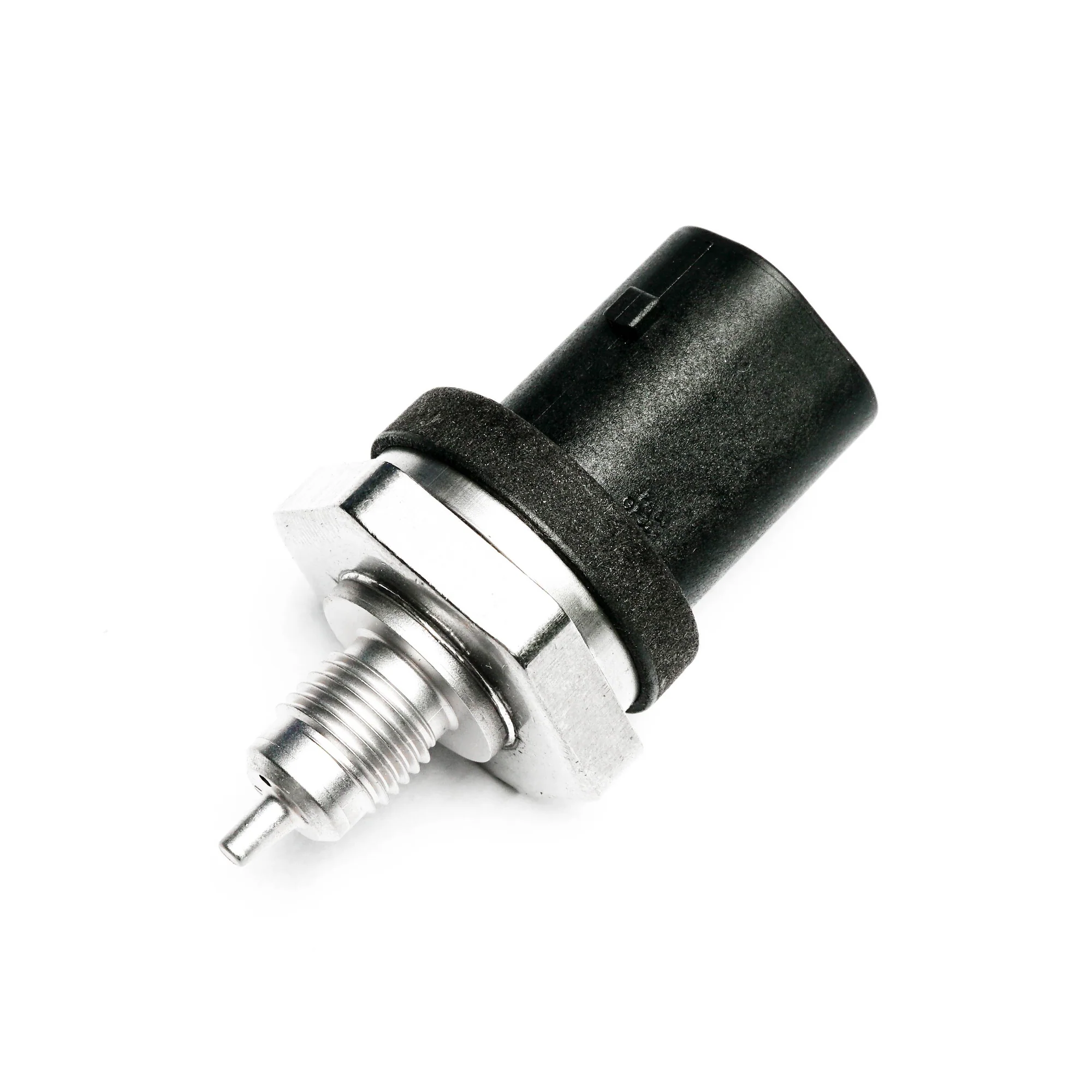

Bosch Combined Pressure and Temperature Sensor - PST-F 1 Pinout & Wiring
1 connector · full pinout below
Bosch Part Number: 0261.544.01F
Connectors

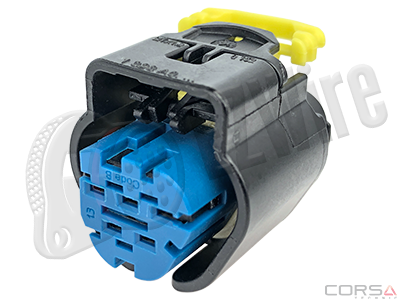

Bosch1 928 405 159- 5-way
| Pin | Function |
|---|---|
| 1 | - |
| 2 | Pressure Signal |
| 3 | +5v |
| 4 | Ground |
| 5 | Temperature Signal |
Always verify the pinout against the manufacturer datasheet before wiring.
