Bosch · Knock Sensor
Bosch 0 261 231 045 (0261231045) Knock Sensor Pinout & Wiring
1 connector · full pinout below
Bosch Knock Sensors are highly accurate and sensitive to detect engine knock, ensuring efficient performance and long life of your vehicle.
Connectors

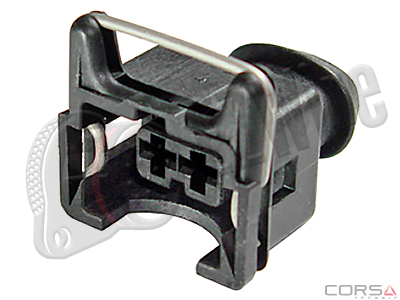

Corsa TechnicJPT.STD-2S- 2-way
| Pin | Function |
|---|---|
| 1 | SENSOR + (SIGNAL) |
| 2 | SENSOR - |
Always verify the pinout against the manufacturer datasheet before wiring.
Building a harness around the Bosch 0 261 231 045 (0261231045) Knock Sensor?
The Bosch Bosch 0 261 231 045 (0261231045) Knock Sensor is pre-loaded in EZ Wire with every connector and pin mapped - plus 90+ other devices. Start designing in minutes.
Get started from $18/mo
14-day money-back guarantee
Frequently asked questions
How many connectors does the Bosch Bosch 0 261 231 045 (0261231045) Knock Sensor have?
The Bosch Bosch 0 261 231 045 (0261231045) Knock Sensor has 1 connector: KNOCK SENSOR (2-way).
What is the Bosch Bosch 0 261 231 045 (0261231045) Knock Sensor pinout?
The full cavity-by-cavity pinout for the Bosch Bosch 0 261 231 045 (0261231045) Knock Sensor is listed on this page, and is pre-loaded in EZ Wire so you can import it into a harness in one click.
