Bosch 0 261 230 119 3 Bar MAP Sensor Pinout & Wiring
1 connector · full pinout below
Connectors

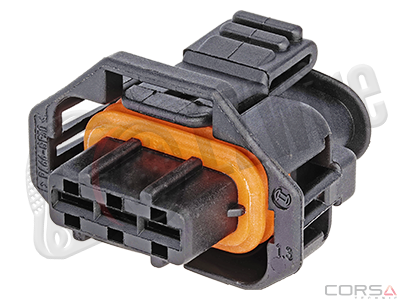

Bosch1928403870- 3-way
| Pin | Function |
|---|---|
| 1 | +5V |
| 2 | Sensor Ground |
| 3 | MAP Signal |
Always verify the pinout against the manufacturer datasheet before wiring.
