Bosch · Sensor (Pressure / Temperature)
T-MAP Sensor, 4 bar & 130 deg C Pinout & Wiring
1 connector · full pinout below
- Combined Temperature and Pressure sensor. 2x Sensors in one..!! - 0.5 - 4.0 bar (58psi) Pressure Sensor for air - -40 - 130 deg C Temperature sensor for air - Compact 4-pin connector
Connectors

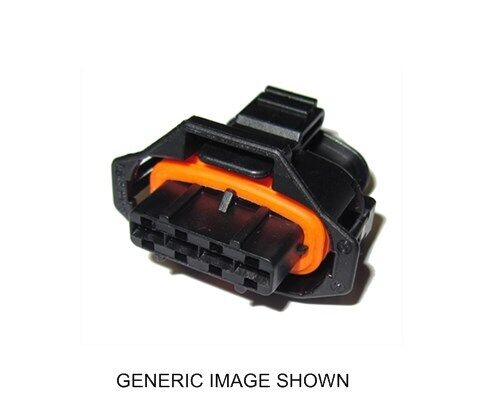

BoschD 261 205 336-01- 4-way
| Pin | Function |
|---|---|
| 1 | Sensor Ground |
| 2 | Temp Signal |
| 3 | +5v |
| 4 | Pressure Signal |
Always verify the pinout against the manufacturer datasheet before wiring.
Building a harness around the T-MAP Sensor, 4 bar & 130 deg C?
The Bosch T-MAP Sensor, 4 bar & 130 deg C is pre-loaded in EZ Wire with every connector and pin mapped - plus 90+ other devices. Start designing in minutes.
Get started from $18/mo
14-day money-back guarantee
Frequently asked questions
How many connectors does the Bosch T-MAP Sensor, 4 bar & 130 deg C have?
The Bosch T-MAP Sensor, 4 bar & 130 deg C has 1 connector: T-MAP (4-way).
What is the Bosch T-MAP Sensor, 4 bar & 130 deg C pinout?
The full cavity-by-cavity pinout for the Bosch T-MAP Sensor, 4 bar & 130 deg C is listed on this page, and is pre-loaded in EZ Wire so you can import it into a harness in one click.
