Toyota GT86 / Subaru BRZ accelerator pedal (198800-9020 / 36010CA050) Pinout & Wiring
1 connector · full pinout below
Toyota GT86 / Subaru BRZ (Part numbers Toyota: 198800-9020 Subaru: 36010CA050) electronic throttle/accelerator pedal
Connectors

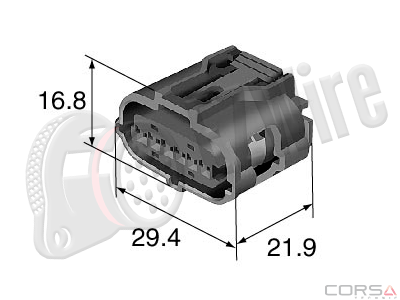

Sumitomo6189-1083- 6-way
| Pin | Function |
|---|---|
| 1 | VC2 – Sensor Supply (5v+) |
| 2 | GND2 – Sensor Ground |
| 3 | VPA2 – APP 2 |
| 4 | VC1 – Sensor Supply (5v+) |
| 5 | GND1 – Sensor Ground |
| 6 | VPA1 – APP 1 |
Always verify the pinout against the manufacturer datasheet before wiring.
