4E-FTE Distributor (Cam Sensor) Pinout & Wiring
1 connector · full pinout below
Toyota 4E-FTE 4-Way Distributor (cam sensor). Has a 24 tooth trigger with 2 cam sync pluses 360 degrees (180 degrees on cam) opposite each other. Present on 1989-1999 EP82 and EP91 Toyota Starlet GT Turbo and Glanza V with 4E-FTE engines.
Connectors

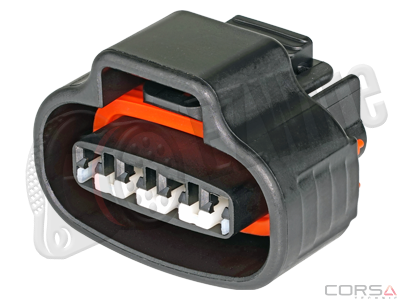

Sumitomo6189-0598- 4-way
| Pin | Function |
|---|---|
| 1 | 24 Tooth (NE) |
| 2 | Cam Sync (G1) |
| 3 | Cam Sync (G2) |
| 4 | Sensor Ground (G-) |
Always verify the pinout against the manufacturer datasheet before wiring.
