Toyota · Windscreen Wiper Motor
1996-1999 EP91 Glanza V Windscreen Wiper Motor Pinout & Wiring
1 connector · full pinout below
Connectors

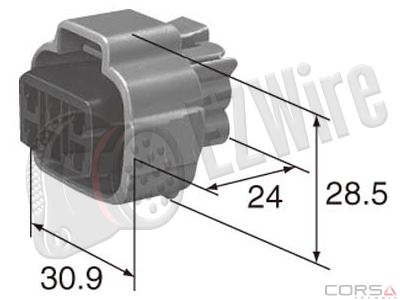

Sumitomo6189-0323- 6-way
| Pin | Function |
|---|---|
| 1 | Ground |
| 2 | High Speed Winding |
| 3 | Low Speed Winding |
| 4 | Not used |
| 5 | Park Switch Common Signal |
| 6 | Park Switch 12V Supply |
Always verify the pinout against the manufacturer datasheet before wiring.
