2JZ Cam Sensor Pinout & Wiring
1 connector · full pinout below
Two Cam Position Sensors are present on the Non VVTi engine, both are Reluctor sensors with a single tooth pickup The sensors are located on the LHS of the cylinder head near the intake manifold/injectors with G1 located midway along the engine, and G2 located towards the rear. The G2 sensor is used with Haltech Terminated Harnesses. The VVTi models use a single Reluctor Cam Position Sensor which has a 3x tooth pickup.
Connectors

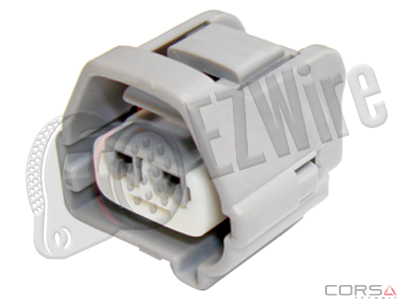

Yazaki7283-7023-10- 2-way
| Pin | Function |
|---|---|
| 1 | NE+ |
| 2 | NE- |
Always verify the pinout against the manufacturer datasheet before wiring.
Datasheets & documentation
Building a harness around the 2JZ Cam Sensor?
The Toyota 2JZ Cam Sensor is pre-loaded in EZ Wire with every connector and pin mapped - plus 90+ other devices. Start designing in minutes.
14-day money-back guarantee
Frequently asked questions
How many connectors does the Toyota 2JZ Cam Sensor have?
The Toyota 2JZ Cam Sensor has 1 connector: CAM (2-way).
What is the Toyota 2JZ Cam Sensor pinout?
The full cavity-by-cavity pinout for the Toyota 2JZ Cam Sensor is listed on this page, and is pre-loaded in EZ Wire so you can import it into a harness in one click.
