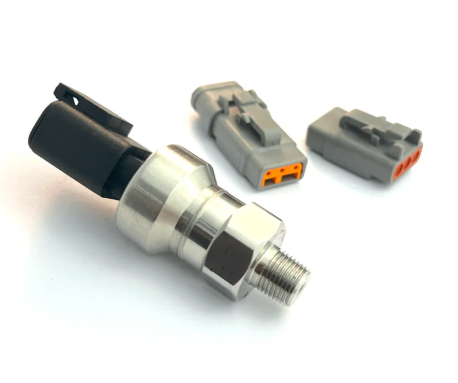

MSPP 5 BAR ABSOLUTE (MAP) Precision Pressure Sensor Pinout & Wiring
1 connector · full pinout below
Deutsch DTM Connector Stainless Construction ABSOLUTE (MAP) Pressure 0 to 5BAR
Connectors

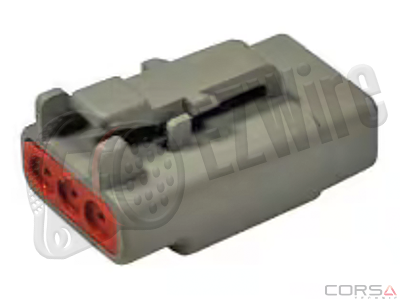

DTM06-3S-E007- 3-way
| Pin | Function |
|---|---|
| 1 | Sensor Ground |
| 2 | Pressure Signal |
| 3 | +5v |
Always verify the pinout against the manufacturer datasheet before wiring.
