Syltech · Sensor (Temp)
Syltech Fast Response IAT [IAT E15] Pinout & Wiring
1 connector · full pinout below

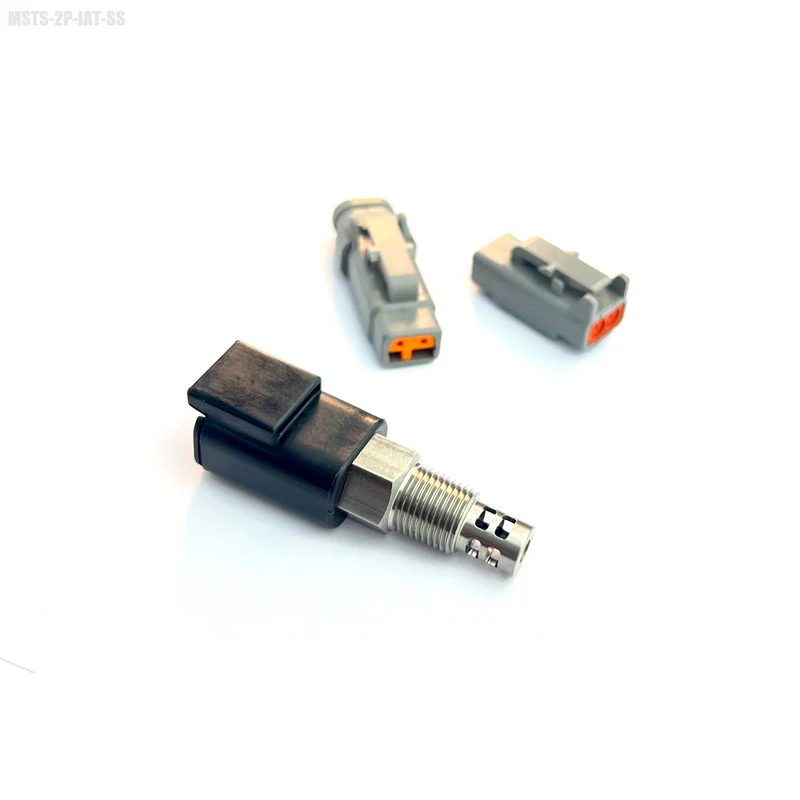

![Syltech Syltech Fast Response IAT [IAT E15]](https://ezwire.app/storage/devices/PYb6l1a8febKh45akeMOcY58BOVEbP3W4zugjs12.webp)
2Pin DTM Connector, 1/8"NPT, Stainless Open Caged Shell, Epoxy Element -30 to 150degC (-22 to 302degF)
Connectors

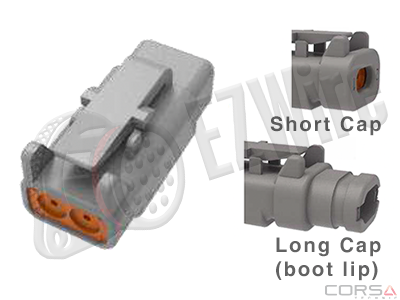

DTM06-2S-EE03- 2-way
| Pin | Function |
|---|---|
| 1 | Signal |
| 2 | Sensor ground |
Always verify the pinout against the manufacturer datasheet before wiring.
