Syltech Flex Fuel Sensor SS-0616-101 Pinout & Wiring
1 connector · full pinout below
Type: Flex Fuel Sensor Connection: 3 Wire Power: 12VDС Barb: 3/8" (Push On/Quick Connect Lock Fuel Adapter Compatible) Maximum Flow: 400LPH Operating Temperature:-40 to 150°C Sensor Output Pull-Up Resistor: 2.2 - 10.0ΚΩ Output: Ethanol Content % = [Frequency (Hz) - 50] Fuel Temperature °C = [41.5 * Pulsewidth (ms)] - 81.25

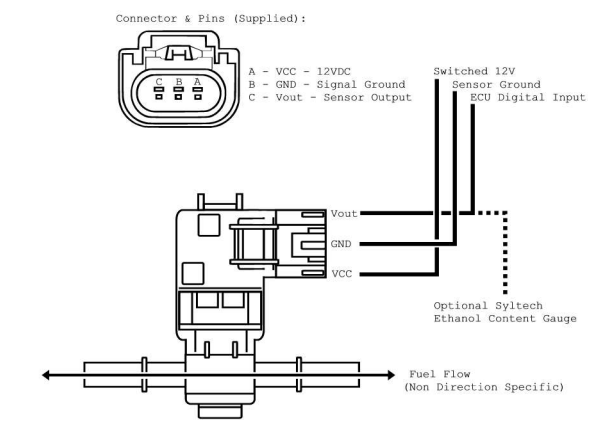

Connectors
Delphi (Aptiv)13511132- 3-way
| Pin | Function |
|---|---|
| 1 | VCC- 12VDC |
| 2 | GND - Signal Ground |
| 3 | Vout - Sensor Output |
Always verify the pinout against the manufacturer datasheet before wiring.
