Moristech P32 Black Box PDM Wiring Harness & Connectors
3 connectors · pre-mapped in EZ Wire

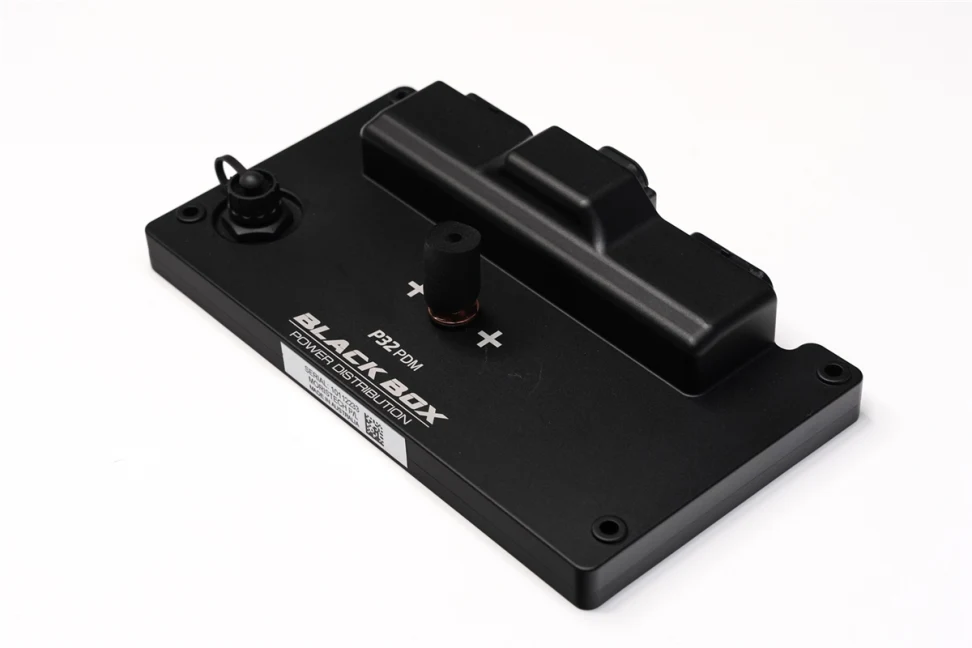

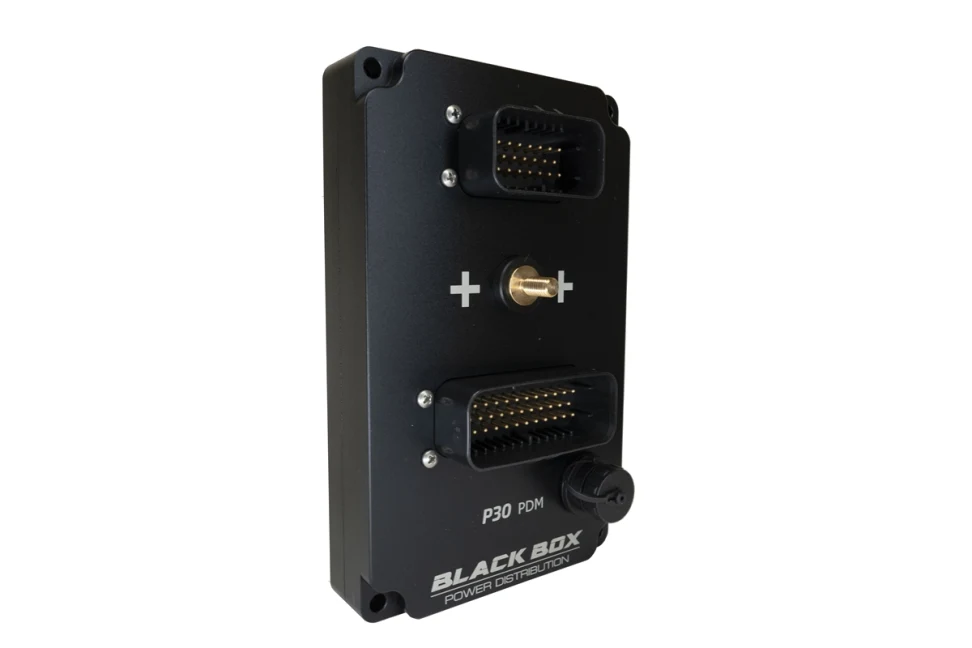

The Moristech P32 Black Box Power Distribution Module (PDM) replaces traditional relays, circuit breakers and fuses. Features: 4 x 27 Amp high frequency PWM. 2 x 22 Amp high frequency PWM. 24 x 8 Amp. 1 x 3 Amp PWM. 32 high side output channels plus 2 Auxiliary low side outputs. 1 x 3 Amp. 2 x low current Switch to ground PWM Auxiliary Outputs. The 2 x 22 Amp outputs can be used together in bridge mode for forward/reverse motor control. The two Auxiliary Outputs are PWM cpable and ideal for motors, fans and pumps that require a speed control signal. Also suitable for indicator lamps and interior lights. 25 wired switch inputs. Including 3 that can be used as temperature sensor inputs. Some outputs can be combined for higher output current. 140 Amp maximum total current recommended. Machined aluminium case. Main body dimensions are 212 x 116 x 49 mm.
Connectors
TE Connectivity4-1437290-0- 34-way
TE Connectivity4-1437290-1- 34-way
DeutschDTP06-4S- 4-way
