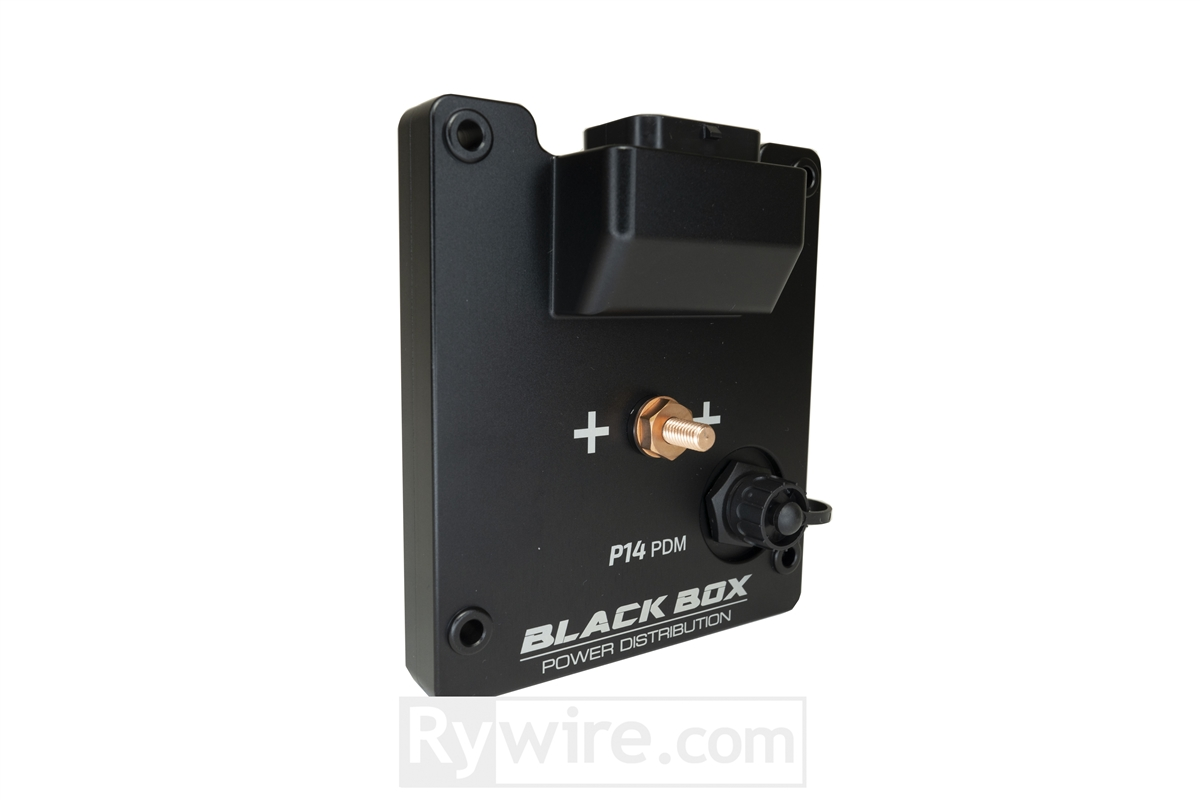

Moristech P14 Black Box Wiring Harness & Connectors
1 connector · pre-mapped in EZ Wire
Features:14 high side output channels. 6 x 22 Amp and 8 x 10 Amp continuous outputs. 130 Amp maximum total current recommended. 10 Switch Inputs. Compatible with 24 volt systems. Programmable functions including True, False, AND, OR, Flash, Pulse Train, PWM ramp,Toggle and Set/Reset to control such things as Turning Indicators, Hazard and Emergency lights. 2 x PWM capable outputs (1 x 22 Amp and 1 x 10 Amp) Image supplied by Rywire.com
Connectors
TE Connectivity4-1437290-0- 34-way
Datasheets & documentation
Import the Moristech P14 Black Box in one click
The Moristech Moristech P14 Black Box is pre-loaded in EZ Wire with every connector and pin mapped - plus 160+ other devices. Start designing in minutes.
14-day money-back guarantee
Frequently asked questions
How many connectors does the Moristech Moristech P14 Black Box have?
The Moristech Moristech P14 Black Box has 1 connector: P14 (34-way).
Can I import the Moristech Moristech P14 Black Box into a wiring harness?
Yes. The Moristech Moristech P14 Black Box is pre-configured in EZ Wire with all connector positions and pinouts mapped, so you can import it into a harness project in one click.
