Haltech · PDM (PDU / PMU)

PD16 Wiring Harness & Connectors

2 connectors · pre-mapped in EZ Wire

Get started from $18/mo Manufacturer page

The NEXUS PD16 is Haltech's new power distribution product. Boasting new, innovative, yet user-friendly technology, it sets a new market standard for power distribution systems. Designed to integrate seamlessly into your existing Haltech Elite or Nexus engine management system, the PD16 ensures safe, dependable power delivery to your vehicle. Compatible with Haltech Elite and Nexus ECUs ONLY Does not function as a stand-alone PDM.

Connectors

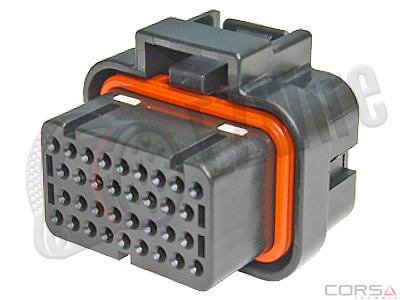

TE Connectivity4-1437290-0- 34-way

Full 34-way pinout is on the manufacturer datasheet, or pre-mapped and ready to import with an EZ Wire subscription.

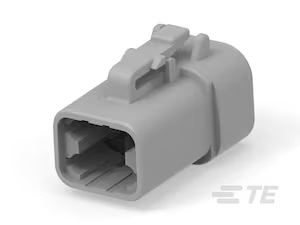

DeutschDTP06-4S- 4-way

Full 4-way pinout is on the manufacturer datasheet, or pre-mapped and ready to import with an EZ Wire subscription.

Import the PD16 in one click

The Haltech PD16 is pre-loaded in EZ Wire with every connector and pin mapped - plus 90+ other devices. Start designing in minutes.

Get started from $18/mo

14-day money-back guarantee

Frequently asked questions

How many connectors does the Haltech PD16 have?

The Haltech PD16 has 2 connectors: PD16-A (34-way), PD16-B (4-way).

Can I import the Haltech PD16 into a wiring harness?

Yes. The Haltech PD16 is pre-configured in EZ Wire with all connector positions and pinouts mapped, so you can import it into a harness project in one click.
