Haltech · Keypad
CAN Keypad 15 button Pinout & Wiring
1 connector · full pinout below
With soft touch, ergonomically designed buttons, the Haltech CAN Keypad is easy to use and simple to configure. The Haltech CAN Keypad is a plug and play control solution for your Haltech system.
Connectors

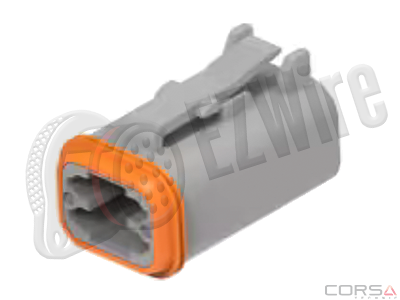

DeutschDT06-4S- 4-way
| Pin | Function |
|---|---|
| 1 | Power |
| 2 | Ground |
| 3 | CAN HI |
| 4 | CAN LO |
Always verify the pinout against the manufacturer datasheet before wiring.
Building a harness around the CAN Keypad 15 button?
The Haltech CAN Keypad 15 button is pre-loaded in EZ Wire with every connector and pin mapped - plus 90+ other devices. Start designing in minutes.
Get started from $18/mo
14-day money-back guarantee
Frequently asked questions
How many connectors does the Haltech CAN Keypad 15 button have?
The Haltech CAN Keypad 15 button has 1 connector: DT-04 (4-way).
What is the Haltech CAN Keypad 15 button pinout?
The full cavity-by-cavity pinout for the Haltech CAN Keypad 15 button is listed on this page, and is pre-loaded in EZ Wire so you can import it into a harness in one click.
