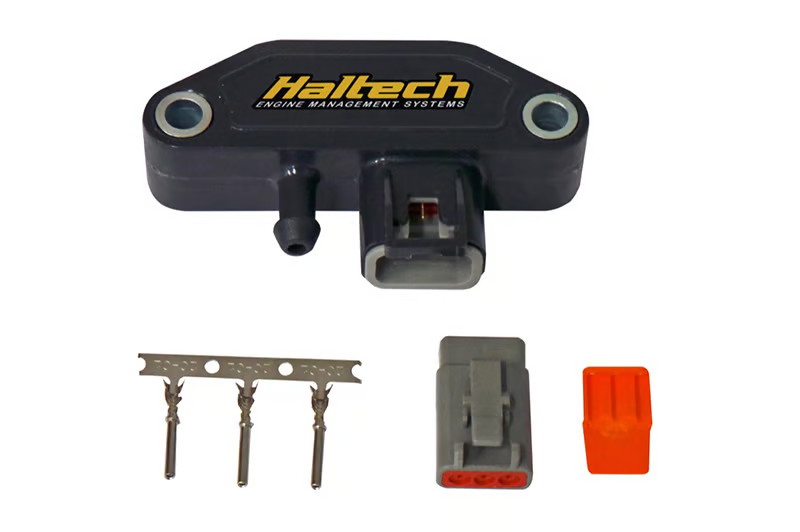

Haltech HT-010136 4 Bar Motorsport MAP Sensor Pinout & Wiring
1 connector · full pinout below
Haltech 4 Bar MAP sensor which uses 3 way DTM connector. Used to measure Intake Manifold Pressure on Turbo or Supercharged engines up to 3bar positive boost pressure.
Connectors
DeutschDTM06-3S- 3-way
| Pin | Function |
|---|---|
| 1 | Sensor Ground |
| 2 | MAP Signal |
| 3 | 5V+ |
Always verify the pinout against the manufacturer datasheet before wiring.
