Haltech GPS Speed Input Module Pinout & Wiring
1 connector · full pinout below

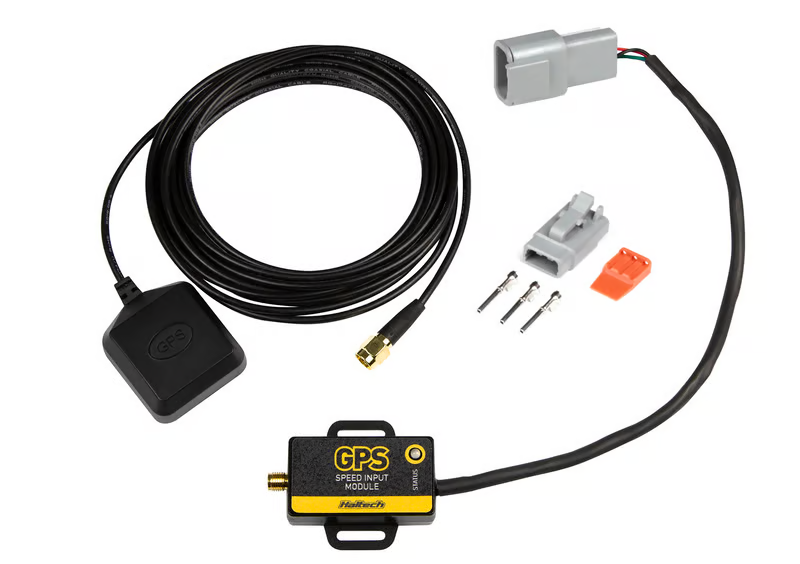

Outputs: 0V to 12V Pulsed Output Suits: Applications that require a digital speed signal Includes: Includes: GPS Speed Input Module & GPS Antenna Matching male DTM-3 Connector and pins Notes: Calibration: 5000ppk (5000 pulses per km), Use with SPI or DPI ECU Inputs, GPS update Rate 10Hz, High Accuracy 0.3% Deviation, Pulse Compensation in tunnel, Anti GPS Drift technology.
Connectors
DeutschDTM06-3S- 3-way
| Pin | Function |
|---|---|
| 1 | Power (+12V) |
| 2 | Signal Output |
| 3 | Battery Ground |
Always verify the pinout against the manufacturer datasheet before wiring.
