Emtron KV16M Wiring Harness & Connectors
3 connectors · pre-mapped in EZ Wire

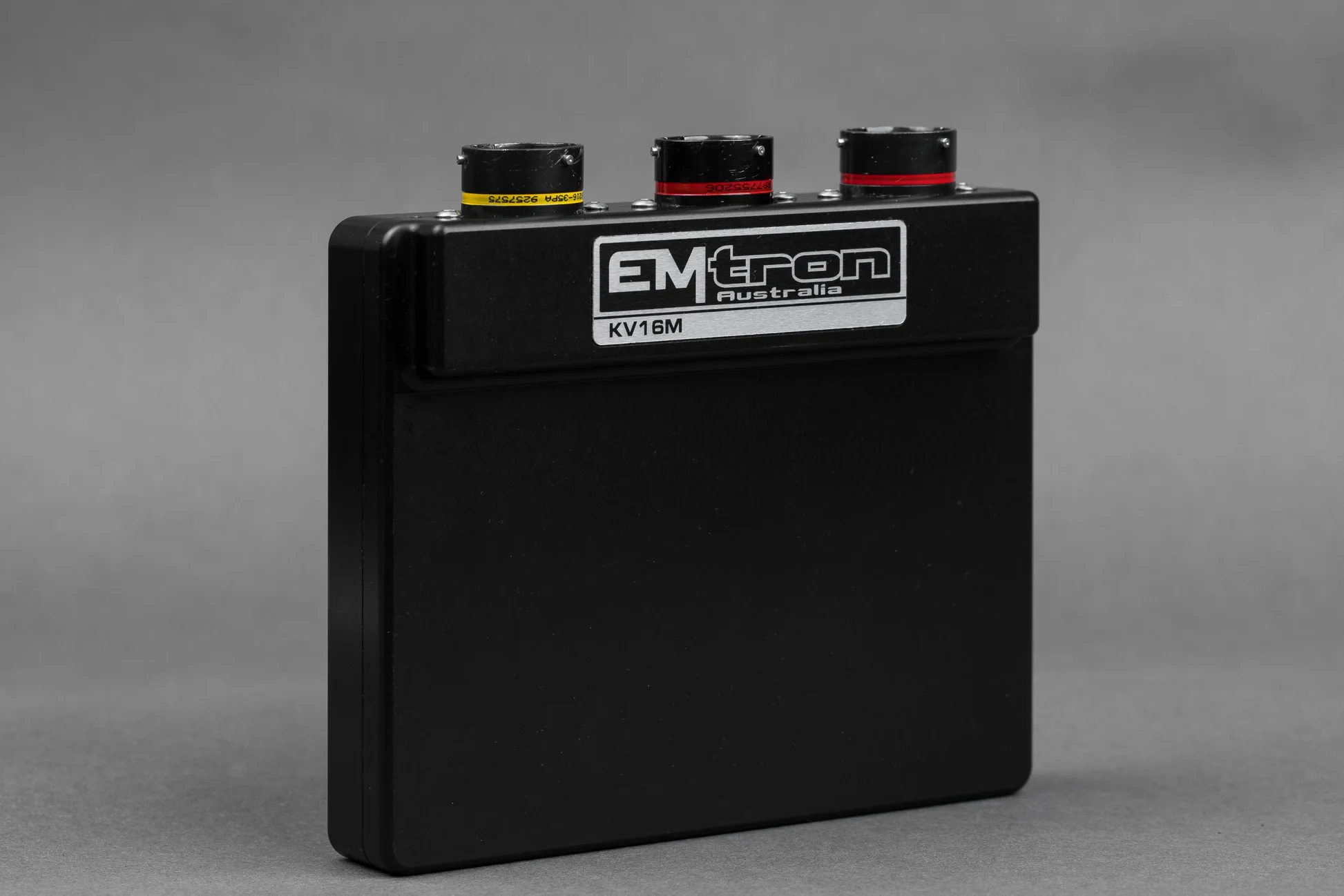

The KV16M motorsport wire-in ECU is built on the race proven KV16 ECU platform with additional flexibility and reliability through utilising 136 Way Deutsch Autosport Connector System
Connectors

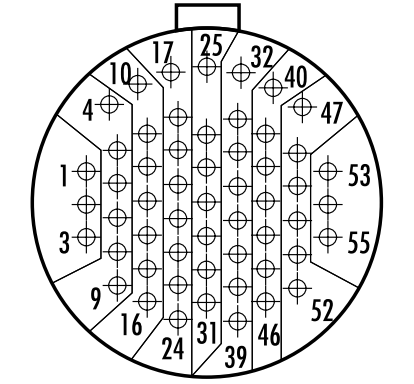

DeutschAS616-35SN- 55-way
Full 55-way pinout is on the manufacturer datasheet, or pre-mapped and ready to import with an EZ Wire subscription.
TE ConnectivityAS616-26SN- 26-way
Full 26-way pinout is on the manufacturer datasheet, or pre-mapped and ready to import with an EZ Wire subscription.

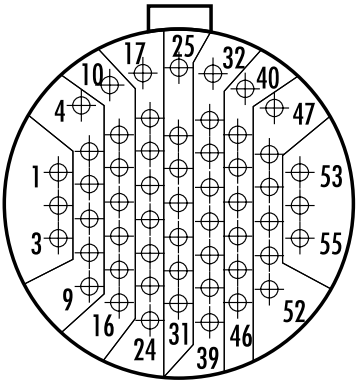

DeutschAS616-35SA- 55-way
Full 55-way pinout is on the manufacturer datasheet, or pre-mapped and ready to import with an EZ Wire subscription.
Import the Emtron KV16M in one click
The Emtron Emtron KV16M is pre-loaded in EZ Wire with every connector and pin mapped - plus 140+ other devices. Start designing in minutes.
Get started from $24/mo
14-day money-back guarantee
Frequently asked questions
How many connectors does the Emtron Emtron KV16M have?
The Emtron Emtron KV16M has 3 connectors: ECUA (55-way), ECUB (26-way), ECUC (55-way).
Can I import the Emtron Emtron KV16M into a wiring harness?
Yes. The Emtron Emtron KV16M is pre-configured in EZ Wire with all connector positions and pinouts mapped, so you can import it into a harness project in one click.
