Emtron · Display/Dash

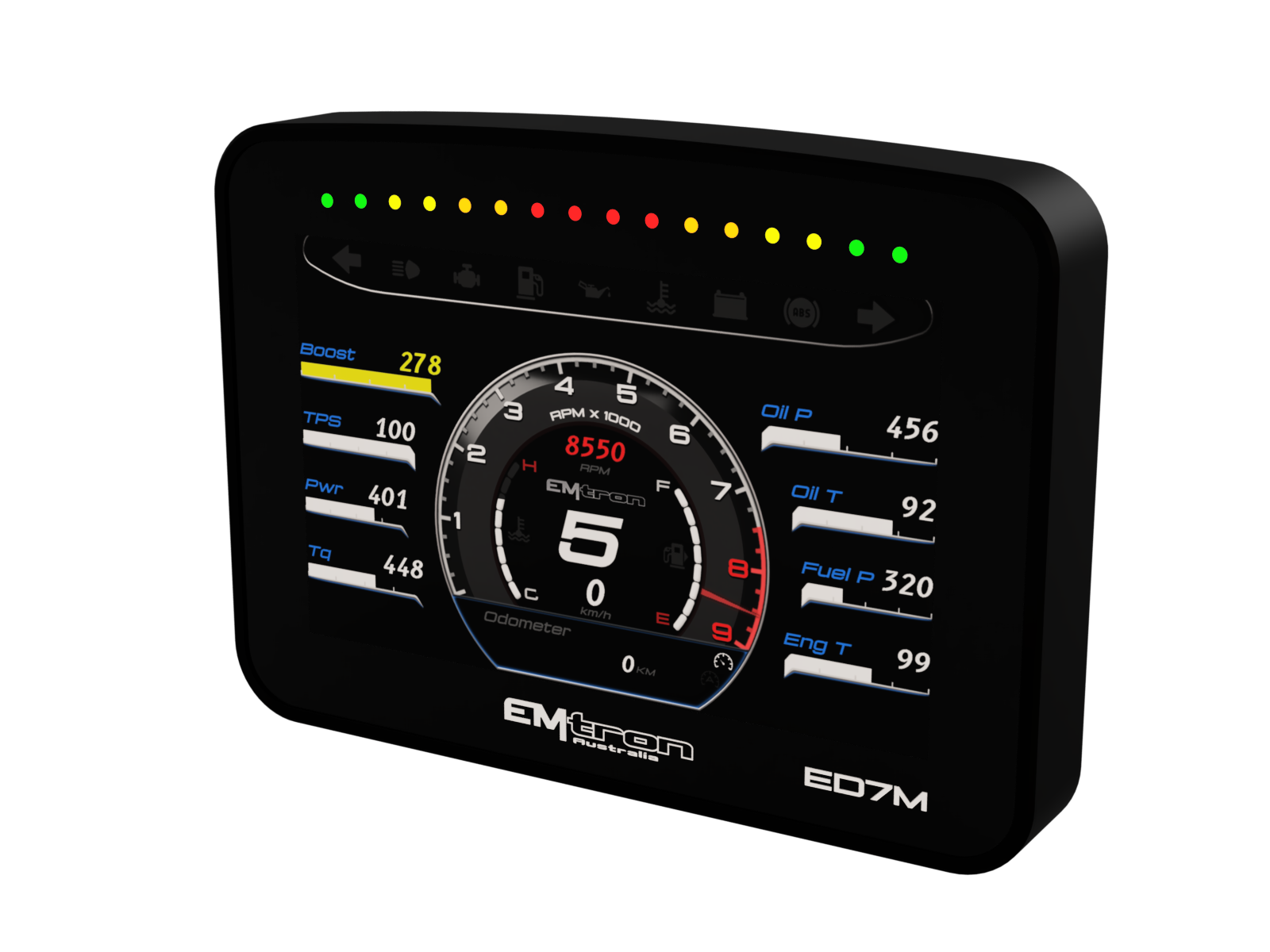

Emtron ED7M Dash Wiring Harness & Connectors
1 connector · pre-mapped in EZ Wire
7.0 inch TFT display 32 GB logging at 2000hz (uncompressed) 4 x CAN Bus circuits 8 x analog inputs 4 x speed sensor inputs 4 x camera inputs 55-way circular connector USB C, WiFi, RS232 & ethernet capable LR mic input and output
Connectors

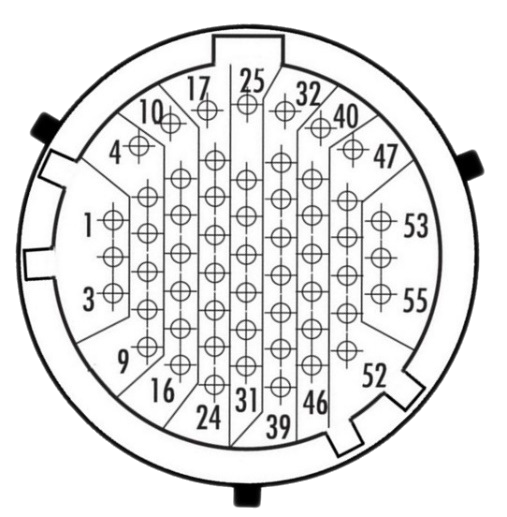

Souriau8DA5-17Z35SN- 55-way
Full 55-way pinout is on the manufacturer datasheet, or pre-mapped and ready to import with an EZ Wire subscription.
Import the Emtron ED7M Dash in one click
The Emtron Emtron ED7M Dash is pre-loaded in EZ Wire with every connector and pin mapped - plus 140+ other devices. Start designing in minutes.
Get started from $24/mo
14-day money-back guarantee
Frequently asked questions
How many connectors does the Emtron Emtron ED7M Dash have?
The Emtron Emtron ED7M Dash has 1 connector: ED7M (55-way).
Can I import the Emtron Emtron ED7M Dash into a wiring harness?
Yes. The Emtron Emtron ED7M Dash is pre-configured in EZ Wire with all connector positions and pinouts mapped, so you can import it into a harness project in one click.
