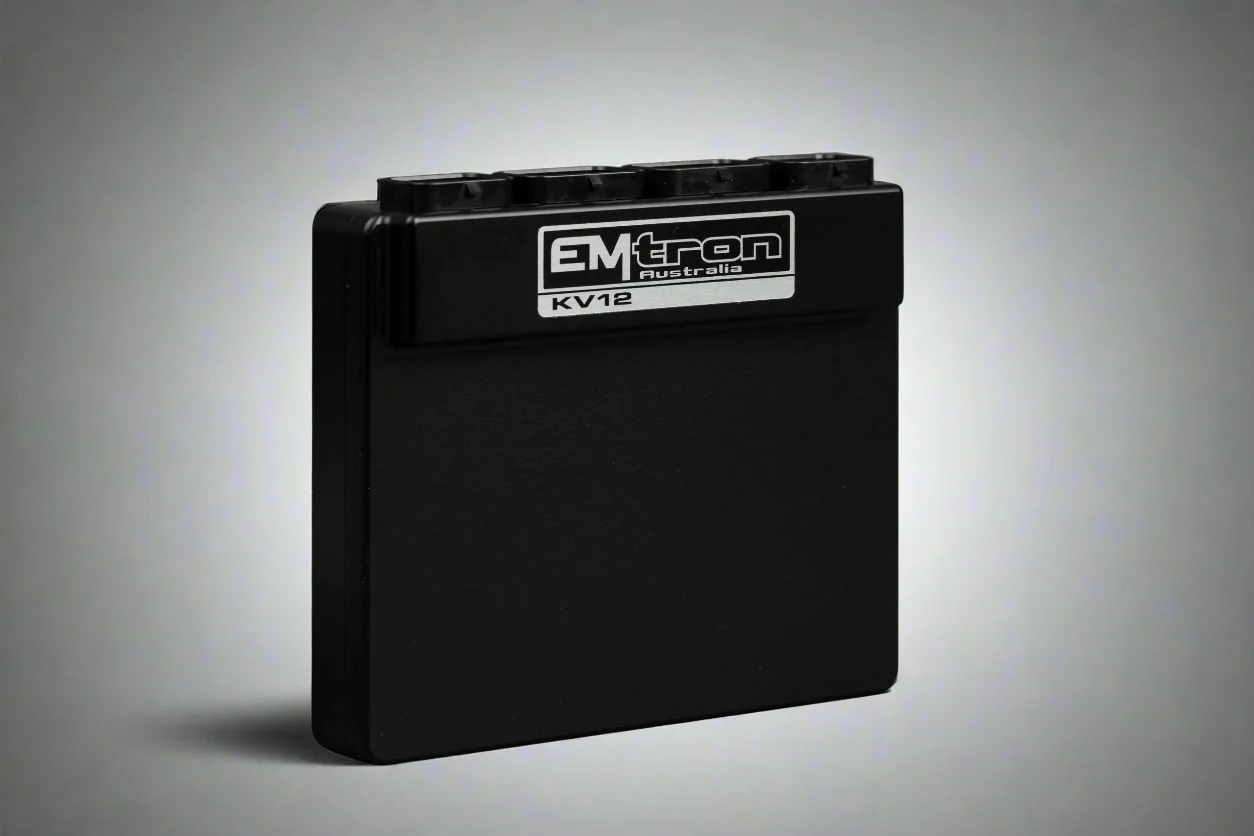

Emtron KV12 - Rev2 Wiring Harness & Connectors
4 connectors · pre-mapped in EZ Wire
Emtron’s KV12 is a wire in ECU with extreme flexibility. Industry leading I/O count will ensure you do not have to make any sacrifices when configuring your engine and vehicle. This ECU will support up to 12 Channels of Fuel (6 cylinders fully sequential staged injection) and 12 Channels fully sequential Ignition. Every KV12 is housed in a durable billet Aluminium enclosure and includes up to 32MB permanent memory for on board logging, 4-channel oscilloscope function, DBW control up to 4 channels, dual LSU4.9 Lambda controllers, dual digital Knock control, Ethernet communications and 3 axis G-force sensing to name a few.
Connectors
TE Connectivity3-1437290-8- 26-way
TE Connectivity4-1437290-1- 34-way
TE Connectivity4-1437290-0- 34-way
TE Connectivity3-1437290-7- 26-way
Import the Emtron KV12 - Rev2 in one click
The Emtron Emtron KV12 - Rev2 is pre-loaded in EZ Wire with every connector and pin mapped - plus 140+ other devices. Start designing in minutes.
14-day money-back guarantee
Frequently asked questions
How many connectors does the Emtron Emtron KV12 - Rev2 have?
The Emtron Emtron KV12 - Rev2 has 4 connectors: ECUA (26-way), ECUB (34-way), ECUC (34-way), ECUD (26-way).
Can I import the Emtron Emtron KV12 - Rev2 into a wiring harness?
Yes. The Emtron Emtron KV12 - Rev2 is pre-configured in EZ Wire with all connector positions and pinouts mapped, so you can import it into a harness project in one click.
