CANChecked TCC08 - Thermocouple Converter on CAN Pinout & Wiring
1 connector · full pinout below

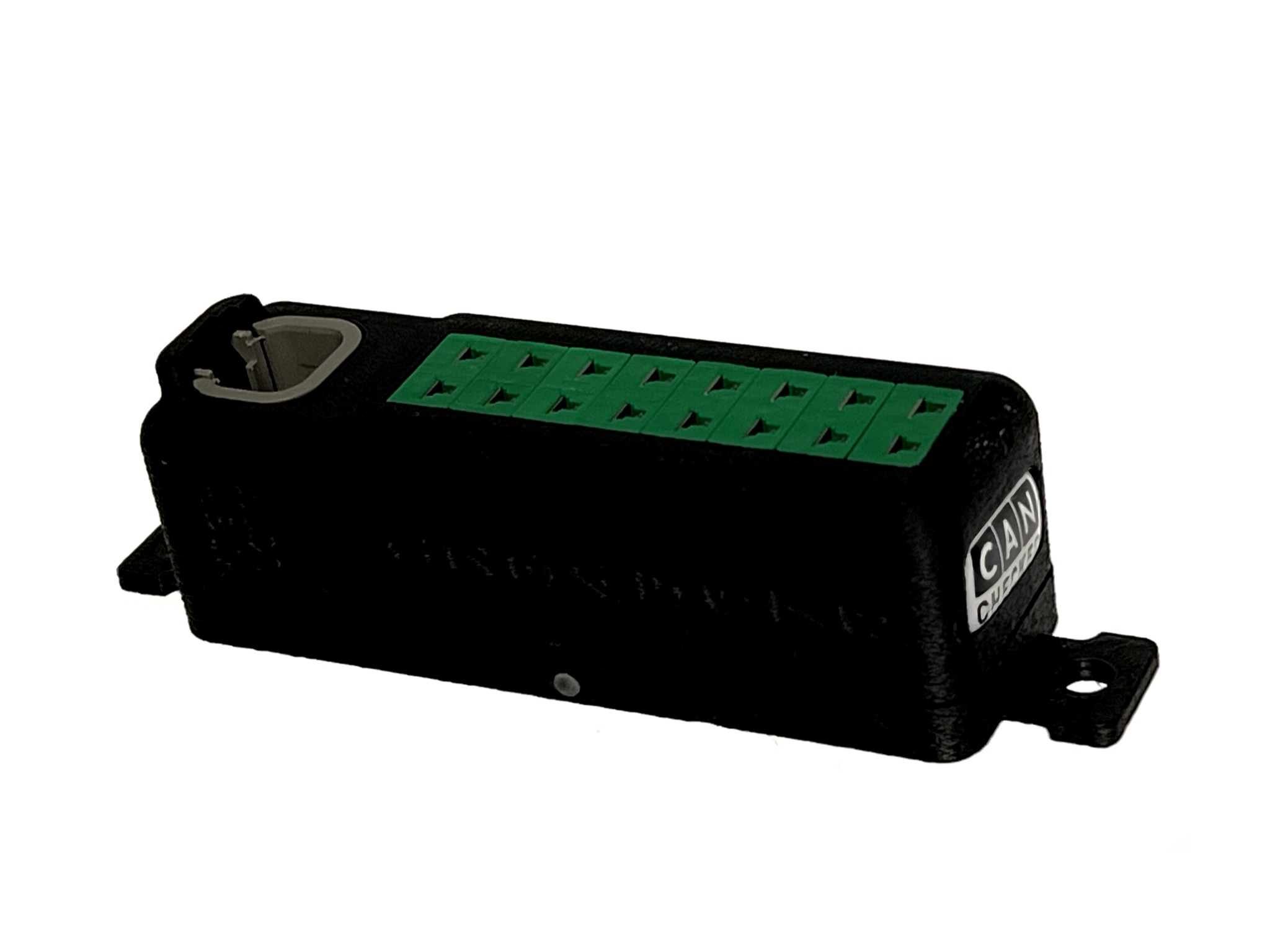

The TCCXX are the larger versions of our TCC01 . The key difference lies in the data transmission. While the TCC01 outputs an analog 0-5 volt signal, the TCCXX transmit their measurements via the CAN bus. Our TCCXX are available in four different sizes and configurations, and all sample at an adjustable frequency of up to 100 Hz and operate in temperatures ranging from -200 to 1350 degrees Celsius.
Connectors
DeutschDTM06-4S- 4-way
| Pin | Function |
|---|---|
| 1 | Ground |
| 2 | 12V |
| 3 | CAN Low |
| 4 | CAN High |
