CANChecked MFD32 Gen2 Wiring Harness & Connectors
2 connectors · pre-mapped in EZ Wire
The MFD32 is rich in features that you can use, but don't have to. Hardware: 3.2" TFT touchscreen, MicroSD, MicroUSB Symmetrical display - therefore ideal for rotating by 90° Views directly on the display or fully configurable with our DSS - Display Setup Software on the PC up to 64 widgets per page 128 sensors (CAN bus + internal) up to 10 pages 4x analog inputs Speed input optional external shift light CAN bus switching
Connectors

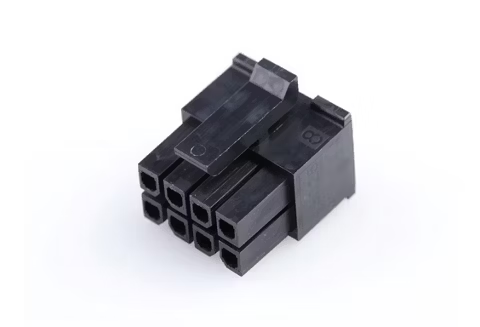

Molex43025-0800- 8-way

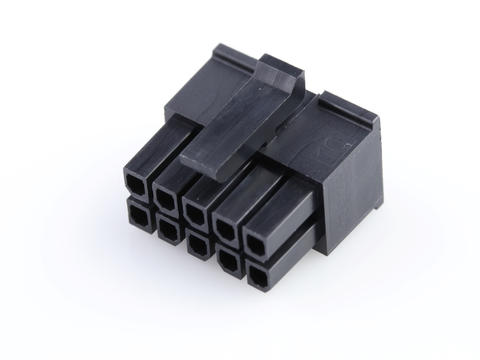

Molex43025-1000- 10-way
Import the CANChecked MFD32 Gen2 in one click
The CANchecked CANChecked MFD32 Gen2 is pre-loaded in EZ Wire with every connector and pin mapped - plus 130+ other devices. Start designing in minutes.
14-day money-back guarantee
Frequently asked questions
How many connectors does the CANchecked CANChecked MFD32 Gen2 have?
The CANchecked CANChecked MFD32 Gen2 has 2 connectors: MFD32_A (8-way), MFD32_B (10-way).
Can I import the CANchecked CANChecked MFD32 Gen2 into a wiring harness?
Yes. The CANchecked CANChecked MFD32 Gen2 is pre-configured in EZ Wire with all connector positions and pinouts mapped, so you can import it into a harness project in one click.
