Turbosmart Black Box Wiring Harness & Connectors
1 connector · pre-mapped in EZ Wire

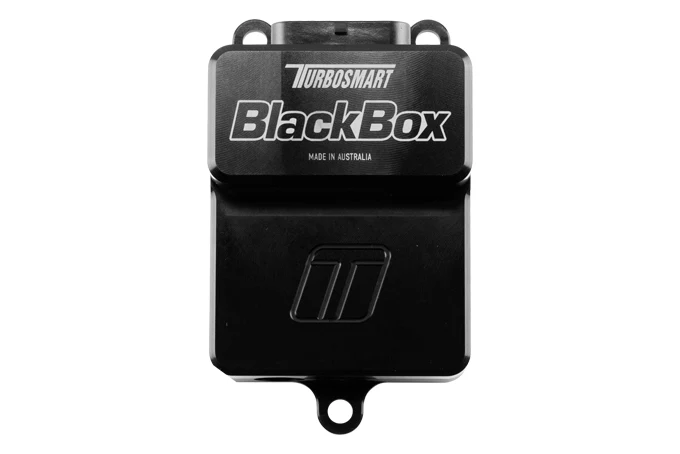

BlackBox by Turbosmart is a dedicated electronic wastegate controller with various factory, aftermarket, and Motorsport ECUs. The BlackBox protects from the current demands and translation of basic and more advanced boost control strategies into a gate position and can be used on single or twin electronic wastegate systems for the ultimate boost control. NOTE: *Each eGate requires 4 power wires. Two Positive and two negative to allow the correct amount of current to flow to the eGate for correct operation. Please see Pinout Current Sharing **The Sensor 0V Reference pin(s) are specialised ground outputs for all analog sensors and frequency inputs. Power Ground should not be connected with 0V Reference Pins. They should remain separate. Grounding these sensor grounds to the battery ground will cause issues with calibration and sensor readings due to noise.
Connectors
TE Connectivity4-1437290-0- 34-way
Datasheets & documentation
Import the Turbosmart Black Box in one click
The Turbosmart Turbosmart Black Box is pre-loaded in EZ Wire with every connector and pin mapped - plus 100+ other devices. Start designing in minutes.
14-day money-back guarantee
Frequently asked questions
How many connectors does the Turbosmart Turbosmart Black Box have?
The Turbosmart Turbosmart Black Box has 1 connector: BLACK_BOX (34-way).
Can I import the Turbosmart Turbosmart Black Box into a wiring harness?
Yes. The Turbosmart Turbosmart Black Box is pre-configured in EZ Wire with all connector positions and pinouts mapped, so you can import it into a harness project in one click.
