Rife · Sensor (Pressure / Temperature)
RIFE Double Sensor Block + 2 M5 Inputs Pinout & Wiring
1 connector · full pinout below
Rife dual Sensor (configuration changes per user)
Connectors

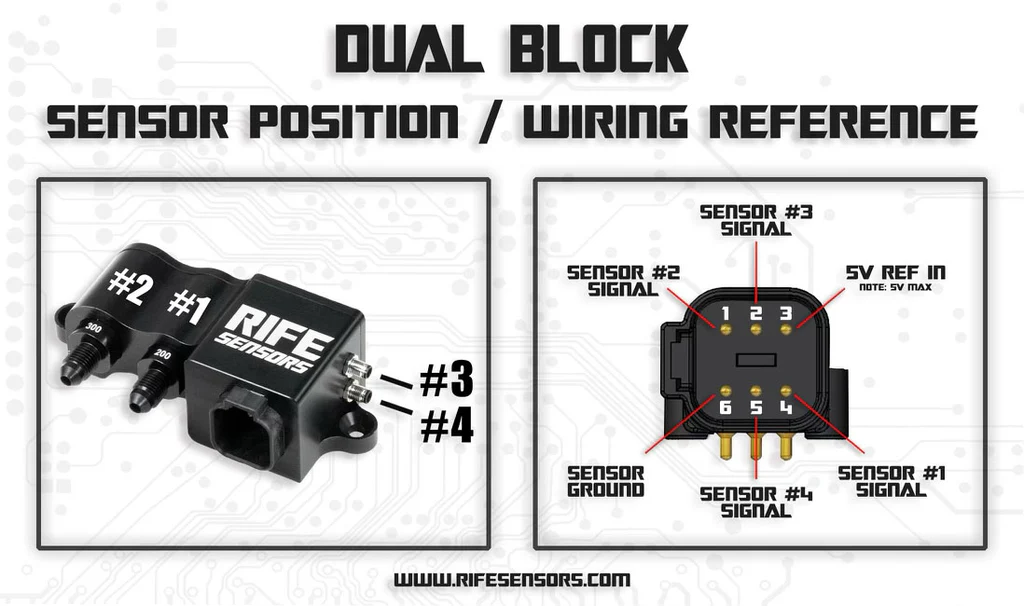

DeutschRIFE-2PC- 6-way
| Pin | Function |
|---|---|
| 1 | Sensor #2 Signal |
| 2 | Sensor #3 Signal |
| 3 | 5V Ref In |
| 4 | Sensor #1 Signal |
| 5 | Sensor #4 Signal |
| 6 | Sensor Ground |
Always verify the pinout against the manufacturer datasheet before wiring.
