Solid State Master Relay Club Battery Isolator Pinout & Wiring
1 connector · full pinout below
MSEL Solid State Master Relay Club Battery Isolator
Connectors

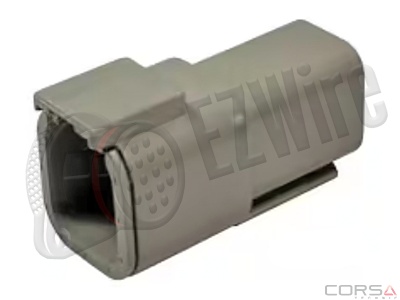

DeutschDTM04-6P- 6-way
| Pin | Function |
|---|---|
| 1 | Ground |
| 2 | Driver Switch |
| 3 | External Switch |
| 4 | PDM/ECU Output |
| 5 | CAN LO |
| 6 | CAN HI |
Always verify the pinout against the manufacturer datasheet before wiring.
