MoTeC · PDM (PDU / PMU)
MoTeC PDM32 Wiring Harness & Connectors
4 connectors · pre-mapped in EZ Wire
MoTeC's 32 output Power Distribution Module is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights, solenoids, and electronic devices such as ECUs and data acquisition systems. Part No: #14107
Connectors

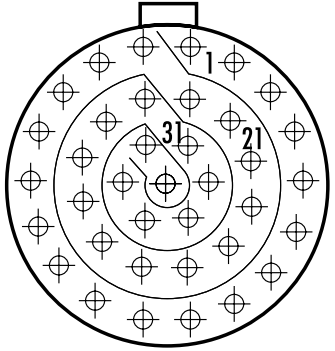

TE ConnectivityAS614-35SN- 37-way
Full 37-way pinout is on the manufacturer datasheet, or pre-mapped and ready to import with an EZ Wire subscription.

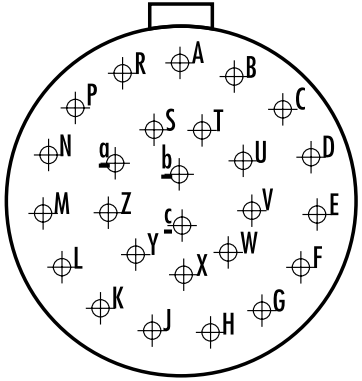

TE ConnectivityAS616-26SN- 26-way
Full 26-way pinout is on the manufacturer datasheet, or pre-mapped and ready to import with an EZ Wire subscription.
DeutschASHD614-1SN-S25- 1-way
Full 1-way pinout is on the manufacturer datasheet, or pre-mapped and ready to import with an EZ Wire subscription.

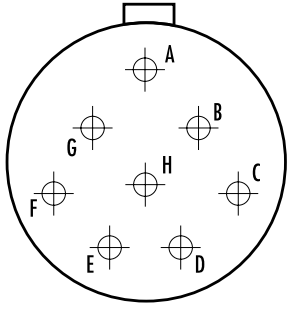

DeutschAS616-08SN- 8-way
Full 8-way pinout is on the manufacturer datasheet, or pre-mapped and ready to import with an EZ Wire subscription.
Import the MoTeC PDM32 in one click
The MoTeC MoTeC PDM32 is pre-loaded in EZ Wire with every connector and pin mapped - plus 90+ other devices. Start designing in minutes.
Get started from $18/mo
14-day money-back guarantee
Frequently asked questions
How many connectors does the MoTeC MoTeC PDM32 have?
The MoTeC MoTeC PDM32 has 4 connectors: PDMA (37-way), PDMB (26-way), PDMC (1-way), PDMD (8-way).
Can I import the MoTeC MoTeC PDM32 into a wiring harness?
Yes. The MoTeC MoTeC PDM32 is pre-configured in EZ Wire with all connector positions and pinouts mapped, so you can import it into a harness project in one click.
