Mectric µPDM4 Wiring Harness & Connectors
1 connector · pre-mapped in EZ Wire

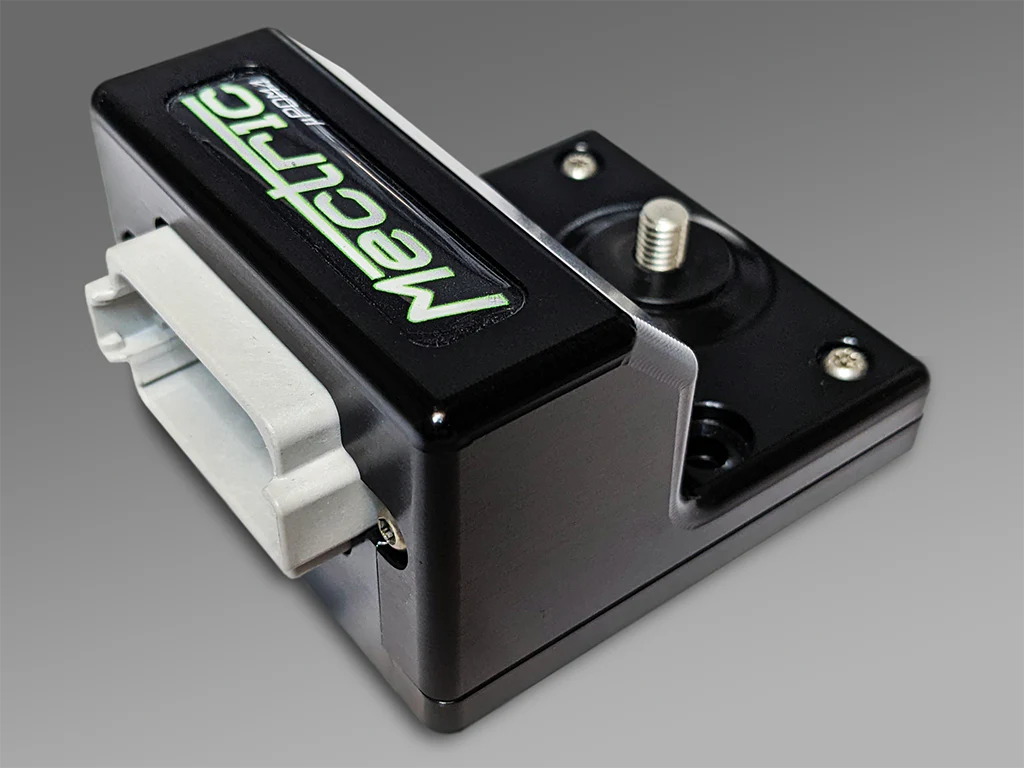

The Mectric Micro PDM4 is a smart 4 channel power distribution module designed to replace mechanical relays and fuses in aftermarket automotive electrical circuits. The device is fully CAN supported allowing for seamless integration with other devices. CAN transmit and receive protocols are fully user definable. Each of the 4 outputs can supply up to 15A continuous load current. Higher loads can be driven by grouping outputs together. Input & output logic is fully programmable. The µPDM4 is constructed from AEC-Q100 Automotive Grade components, ensuring it's reliability in harsh environments. In applications where installers may need to add a small number of power circuits but don't require the size, cost or complexity of a full scale PDM. The Micro PDM4 is perfect for coupling with new engine harness builds or when adding a new set of fans or pumps to a vehicle.
Connectors

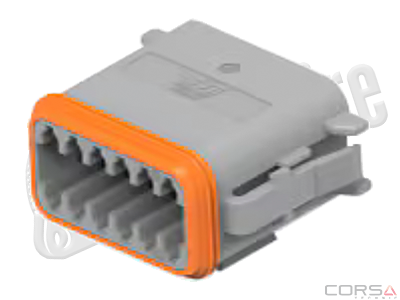

Corsa TechnicDT-12S-x- 12-way
Import the Mectric µPDM4 in one click
The Mectric Motorsport Electronics Mectric µPDM4 is pre-loaded in EZ Wire with every connector and pin mapped - plus 90+ other devices. Start designing in minutes.
14-day money-back guarantee
Frequently asked questions
How many connectors does the Mectric Motorsport Electronics Mectric µPDM4 have?
The Mectric Motorsport Electronics Mectric µPDM4 has 1 connector: µPDM4 (12-way).
Can I import the Mectric Motorsport Electronics Mectric µPDM4 into a wiring harness?
Yes. The Mectric Motorsport Electronics Mectric µPDM4 is pre-configured in EZ Wire with all connector positions and pinouts mapped, so you can import it into a harness project in one click.
