Carbon-6 Drive Pinout & Wiring
1 connector · full pinout below
Carbon 6 Drive Rally Light Product Code #00C6-DRIVE-G3 6.5A current draw at 13.5V
Connectors

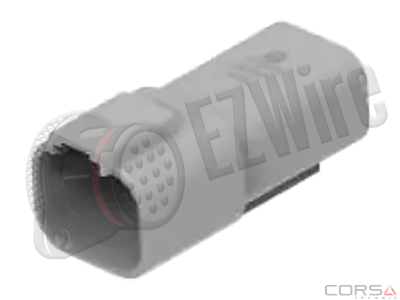

DeutschDT04-4P- 4-way
| Pin | Function |
|---|---|
| 1 | Positive |
| 2 | Negative |
| 3 | Low Output |
| 4 | Dipped Beam |
Always verify the pinout against the manufacturer datasheet before wiring.
