Injector Dynamics 1050-XDS Pinout & Wiring
1 connector · full pinout below
1050CC Injectors
Connectors

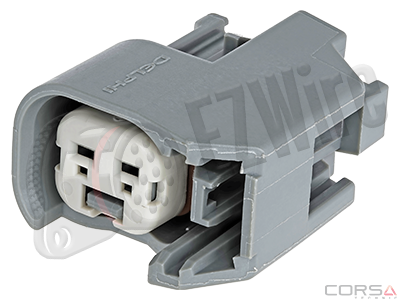

Delphi (Aptiv)15419715- 2-way
| Pin | Function |
|---|---|
| 1 | 12V+ Power |
| 2 | Injector Signal |
Always verify the pinout against the manufacturer datasheet before wiring.
