HP Electronik Powerbox HP8440 Wiring Harness & Connectors
4 connectors · pre-mapped in EZ Wire

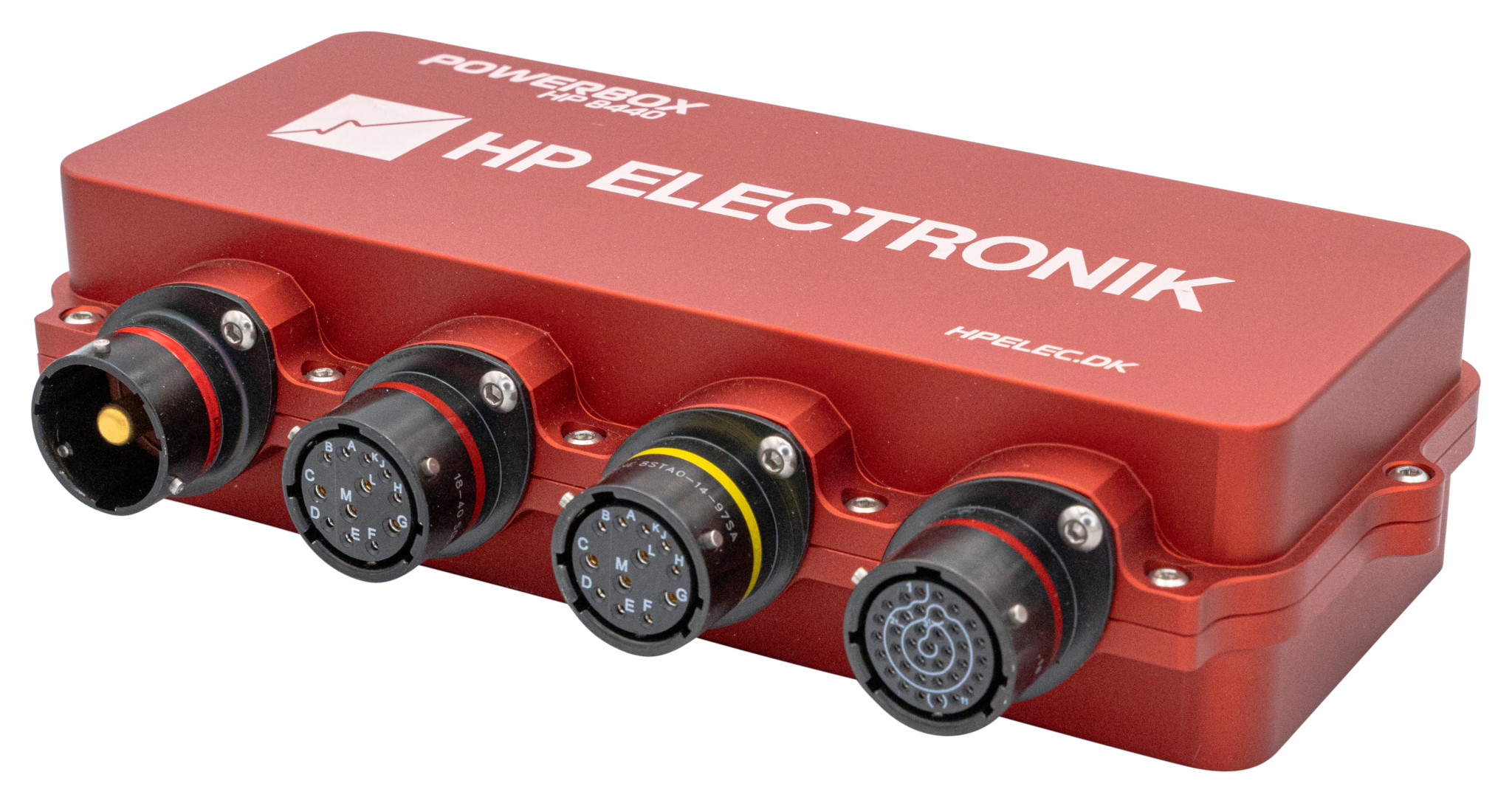

Pinout: 2014v5. The HP8440 Powerbox is an advanced power unit that eliminates the need for traditional fuses and relays in your race car. All power is digitally controlled - just set the "fuse" size on each channel, link the input to an output, and you're ready to go. Smart CAN Integration The Powerbox features a user-friendly CAN interface, allowing easy connection to devices such as: ECU, Switch Panel, Dashboard Example of automation: - When cranking the engine, the fuel pump activates. - When the engine is running, the power steering starts automatically.
Connectors

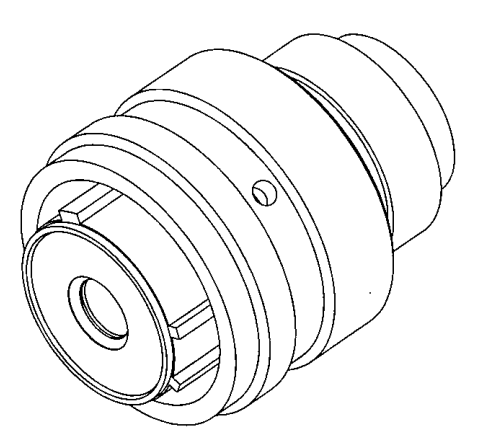

DeutschASHD614-1SN-C35- 1-way

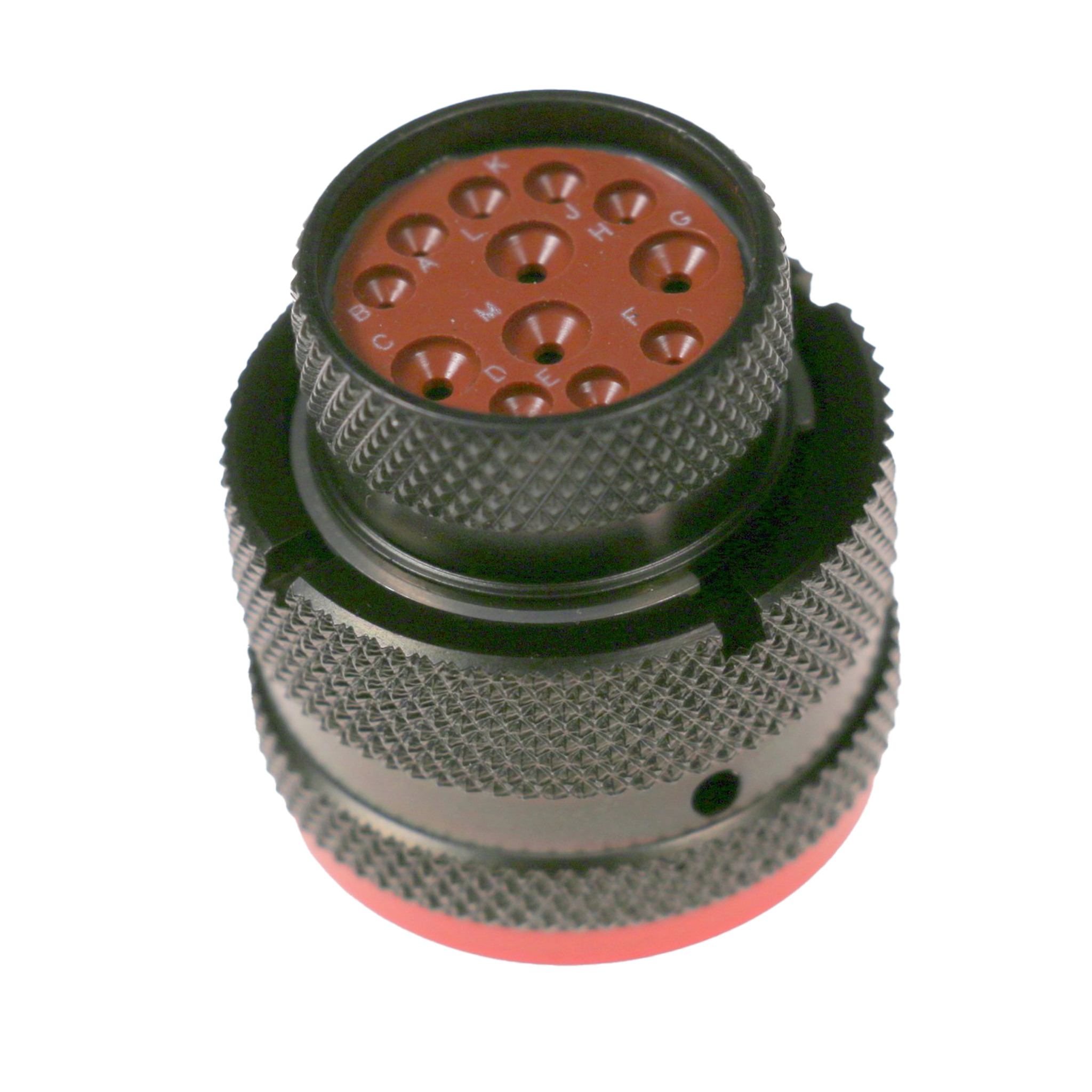

DeutschAS614-97PN- 12-way

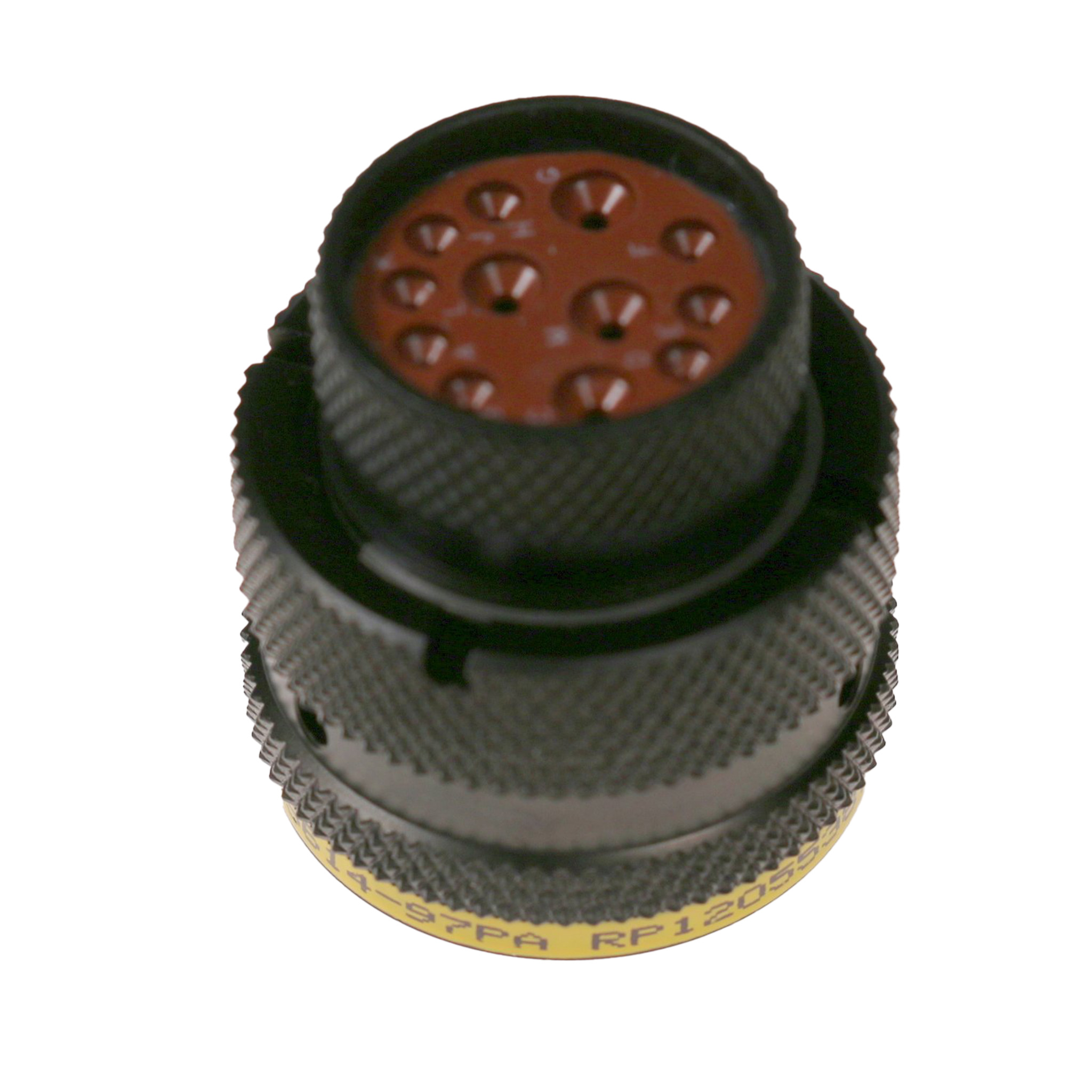

DeutschAS614-97PA- 12-way

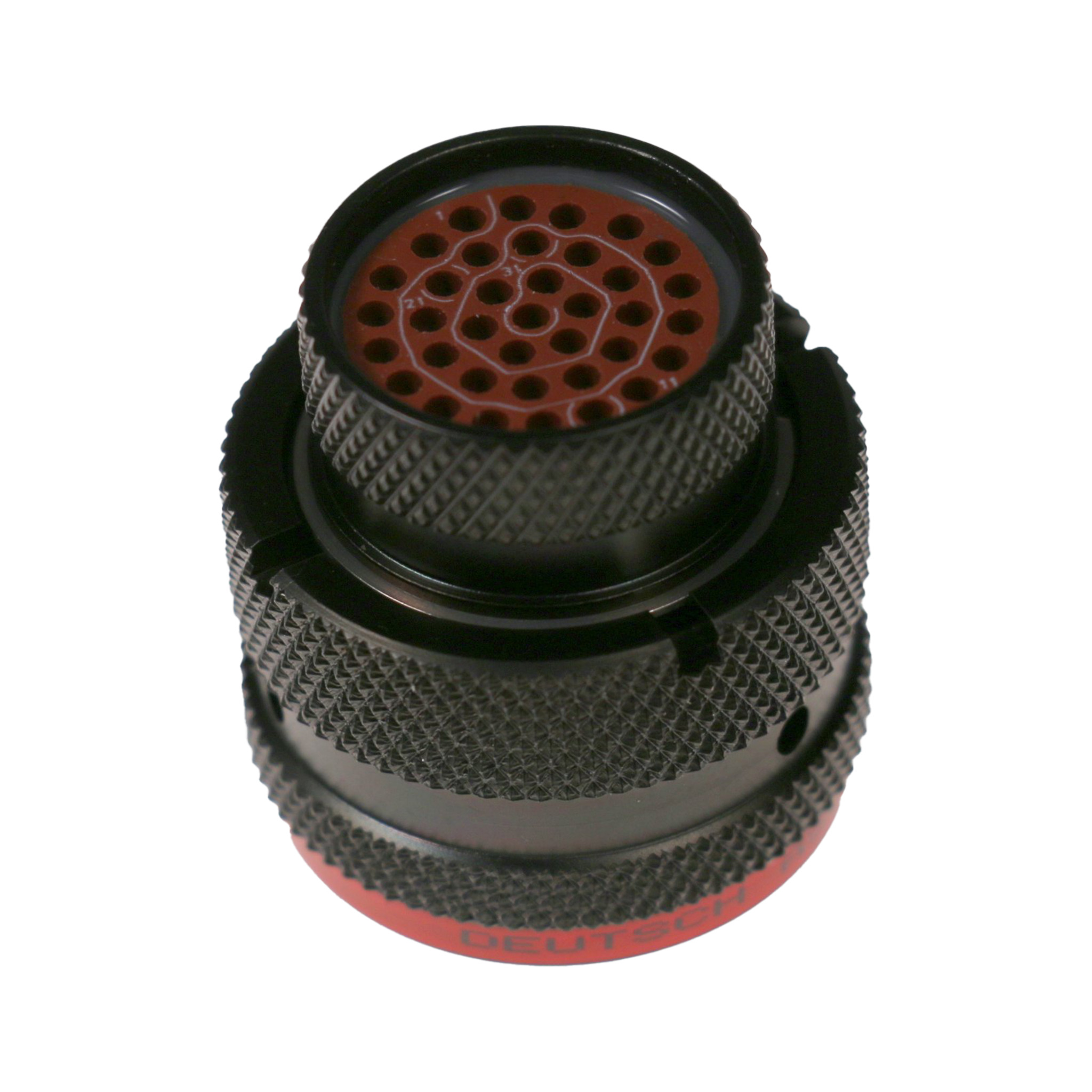

DeutschAS614-35PN- 37-way
Import the HP Electronik Powerbox HP8440 in one click
The HP Electronik HP Electronik Powerbox HP8440 is pre-loaded in EZ Wire with every connector and pin mapped - plus 150+ other devices. Start designing in minutes.
14-day money-back guarantee
Frequently asked questions
How many connectors does the HP Electronik HP Electronik Powerbox HP8440 have?
The HP Electronik HP Electronik Powerbox HP8440 has 4 connectors: HP8440_1 (1-way), HP8440_2 (12-way), HP8440_3 (12-way), HP8440_4 (37-way).
Can I import the HP Electronik HP Electronik Powerbox HP8440 into a wiring harness?
Yes. The HP Electronik HP Electronik Powerbox HP8440 is pre-configured in EZ Wire with all connector positions and pinouts mapped, so you can import it into a harness project in one click.
