Honeywell · Sensor (Pressure)
Honeywell MIPA Sensor Pinout & Wiring
1 connector · full pinout below
This covers all kinds of MIPA sensors. "MIP" is the series name and the letter "A" signifies the Metri-Pack 150 connector and pinout as shown on this device.
Connectors

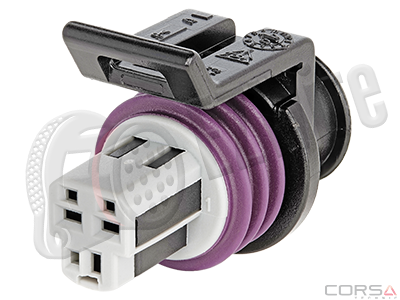

Corsa TechnicGT150.35-3S-6- 3-way
| Pin | Function |
|---|---|
| 1 | Sensor Ground |
| 2 | 5V+ Supply |
| 3 | Pressure Signal |
Always verify the pinout against the manufacturer datasheet before wiring.
