Holley · Sensor (Trigger)
MSD Pro-Billet Distributor Plugs with Cam Sync Pinout & Wiring
1 connector · full pinout below
Cam Position Sensor, Cam Sync, Pro-Billet Plug, Mopar, Big Block RB, Each
Connectors

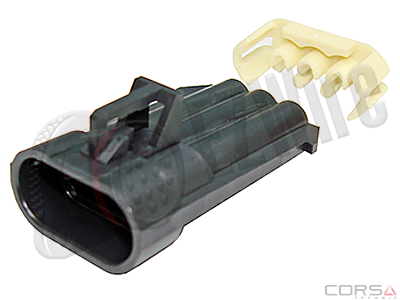

Delphi (Aptiv)12129615- 3-way
| Pin | Function |
|---|---|
| 1 | 5-18V |
| 2 | Signal |
| 3 | Ground |
Always verify the pinout against the manufacturer datasheet before wiring.
Building a harness around the MSD Pro-Billet Distributor Plugs with Cam Sync?
The Holley MSD Pro-Billet Distributor Plugs with Cam Sync is pre-loaded in EZ Wire with every connector and pin mapped - plus 90+ other devices. Start designing in minutes.
Get started from $18/mo
14-day money-back guarantee
Frequently asked questions
How many connectors does the Holley MSD Pro-Billet Distributor Plugs with Cam Sync have?
The Holley MSD Pro-Billet Distributor Plugs with Cam Sync has 1 connector: TRIGGER (3-way).
What is the Holley MSD Pro-Billet Distributor Plugs with Cam Sync pinout?
The full cavity-by-cavity pinout for the Holley MSD Pro-Billet Distributor Plugs with Cam Sync is listed on this page, and is pre-loaded in EZ Wire so you can import it into a harness in one click.
