ECUMaster · Lambda/O2 Sensor

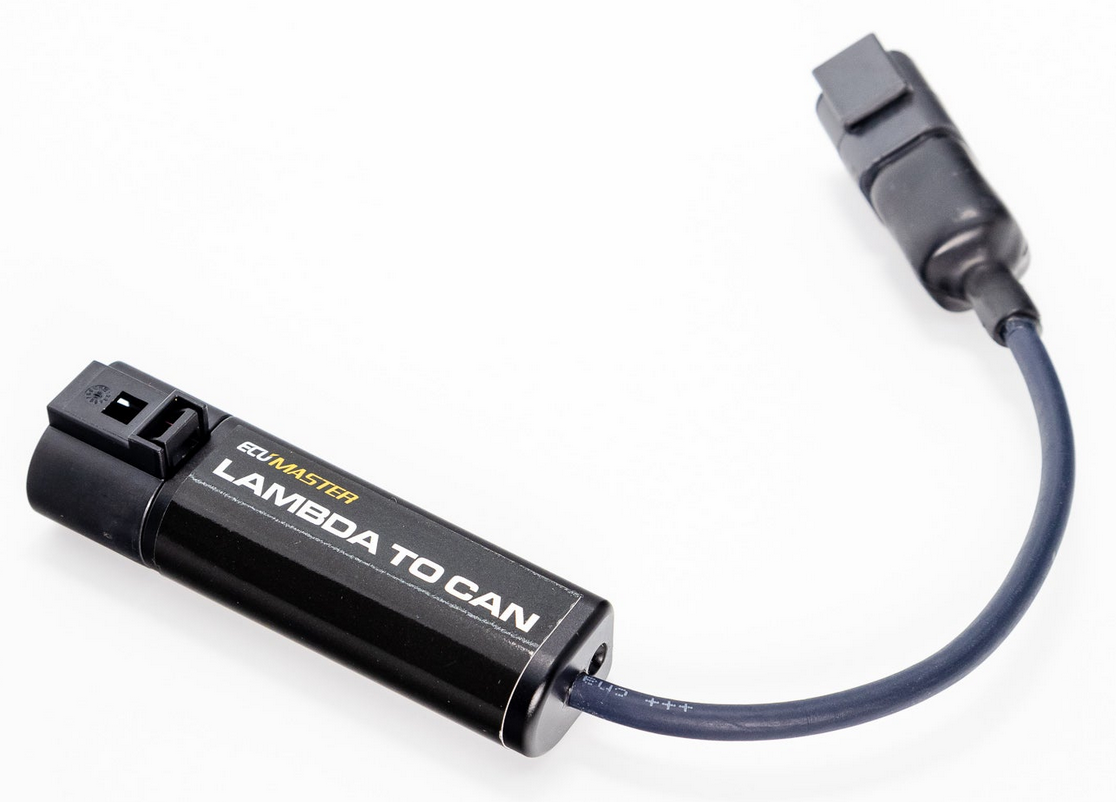

ECUMaster Lambda to CAN Pinout & Wiring
1 connector · full pinout below
Connectors

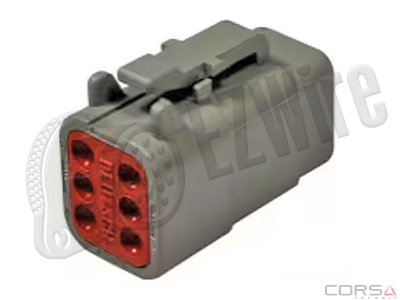

DeutschDTM06-6S- 6-way
| Pin | Function |
|---|---|
| 1 | Ground |
| 2 | CAN L |
| 3 | Analog output |
| 4 | Analog ground |
| 5 | CAN H |
| 6 | +12V (switched) |
Always verify the pinout against the manufacturer datasheet before wiring.
