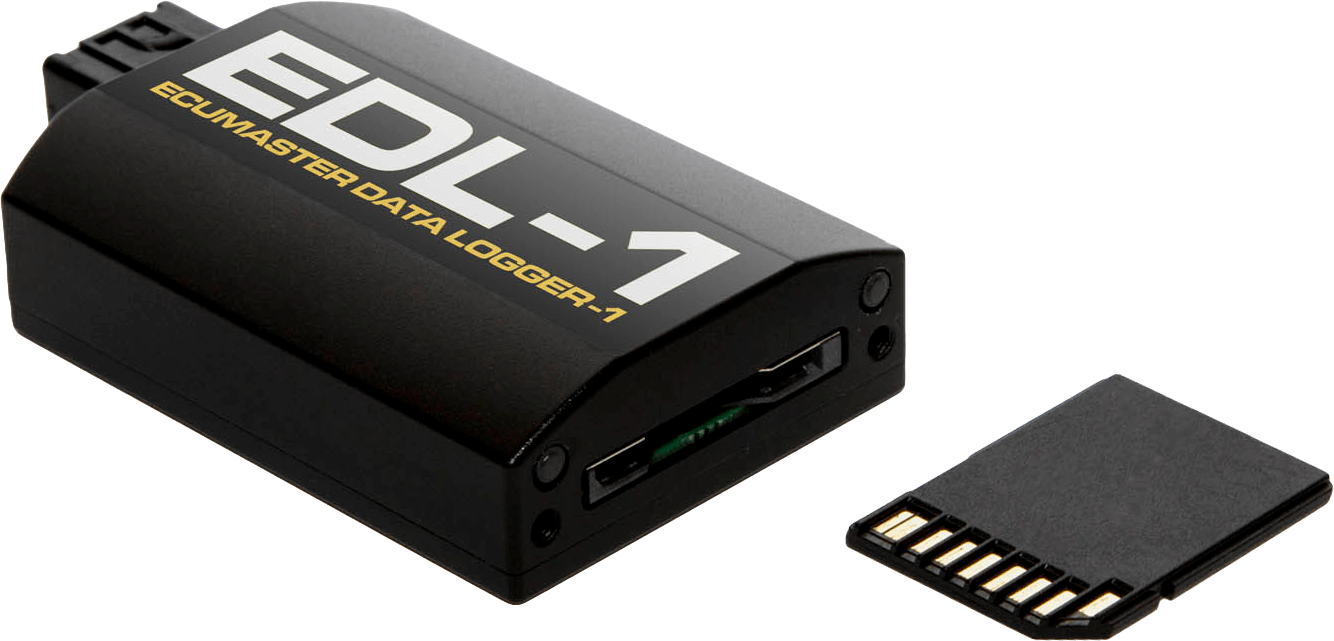

ECUMaster · Data Logger
EDL-1 Pinout & Wiring
1 connector · full pinout below
Connectors

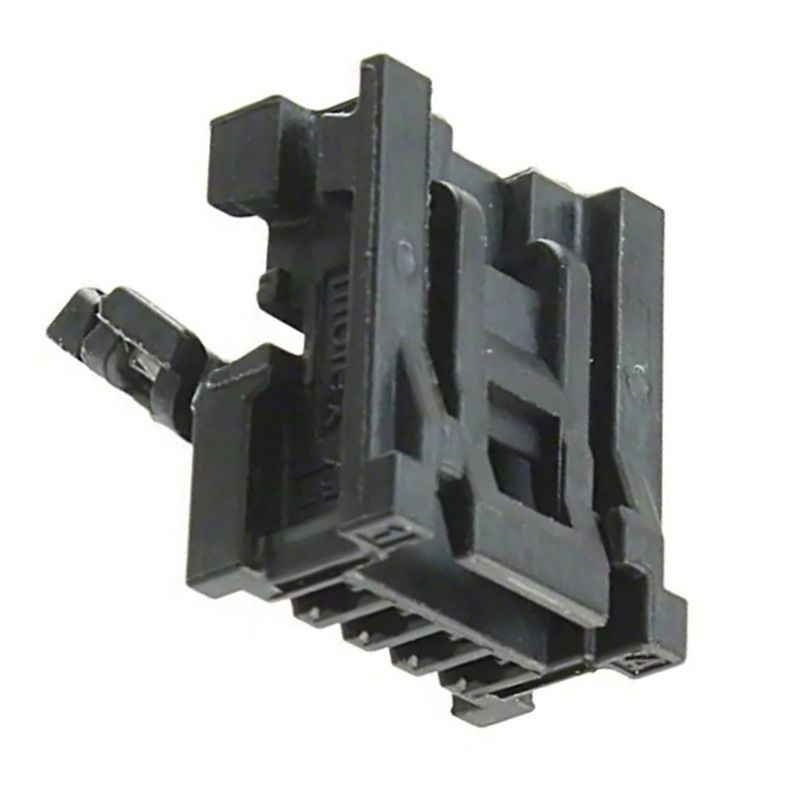

Molex34793-0040- 4-way
| Pin | Function |
|---|---|
| 1 | Ground |
| 2 | RXD |
| 3 | TXD |
| 4 | Power supply |
Always verify the pinout against the manufacturer datasheet before wiring.
