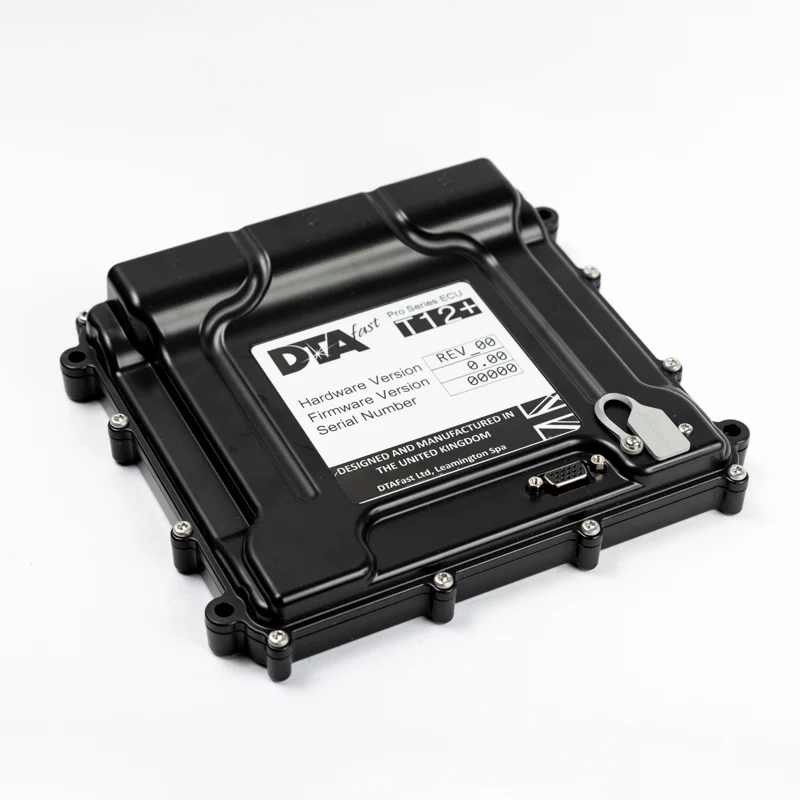

DTAFast T12+ (12 Plus) Wiring Harness & Connectors
3 connectors · pre-mapped in EZ Wire
Pinout Version: 1.03. The T12+ is the big daddy in the DTA range. It’s packed with pretty much everything you’d need to run complex engines up to 12 cylinders, fully sequentially. Dual fly-by-wire, dual knock, quad variable cam, paddle shift – everything but the kitchen sink! T-Series engine control units are powered by an all-new, automotive specific, multi-core processor. They feature Bosch lambda controllers for maximum accuracy, multiple safety redundancies, high resolution map tables, fully configurable I/O and up to 32MB of logging at up to 500 Hz with compression algorithms for fast log downloads. The PC software has a user-friendly, responsive design for better readability on high resolution monitors using high scaling (DPI). It features a full oscilloscope for crankshaft/camshaft signal analysis and allows firmware to be upgraded without special cables or separate software.
Connectors
TE Connectivity4-1437290-0- 34-way
TE Connectivity4-1437290-1- 34-way
TE Connectivity4-1437290-1- 34-way
Import the DTAFast T12+ (12 Plus) in one click
The DTAFast DTAFast T12+ (12 Plus) is pre-loaded in EZ Wire with every connector and pin mapped - plus 120+ other devices. Start designing in minutes.
14-day money-back guarantee
Frequently asked questions
How many connectors does the DTAFast DTAFast T12+ (12 Plus) have?
The DTAFast DTAFast T12+ (12 Plus) has 3 connectors: ECU1 (34-way), ECU2 (34-way), ECU3 (34-way).
Can I import the DTAFast DTAFast T12+ (12 Plus) into a wiring harness?
Yes. The DTAFast DTAFast T12+ (12 Plus) is pre-configured in EZ Wire with all connector positions and pinouts mapped, so you can import it into a harness project in one click.
