Delphi 25037225 Intake Air Temp Sensor Pinout & Wiring
1 connector · full pinout below
ACDelco Fast-Response GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor Cross Reference Numbers: Delphi: 25037225 Delphi: 25036751 Delphi: 25037034 Delphi: 25037334 AC Delco: 213-192 AC Delco: 213-190 Motec: 54001
Connectors

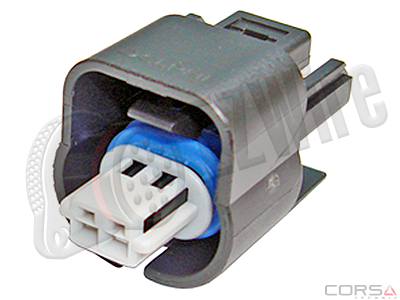

Corsa TechnicGT150.35-2S-2- 2-way
| Pin | Function |
|---|---|
| 1 | Temp Signal |
| 2 | Sensor Ground |
Always verify the pinout against the manufacturer datasheet before wiring.
