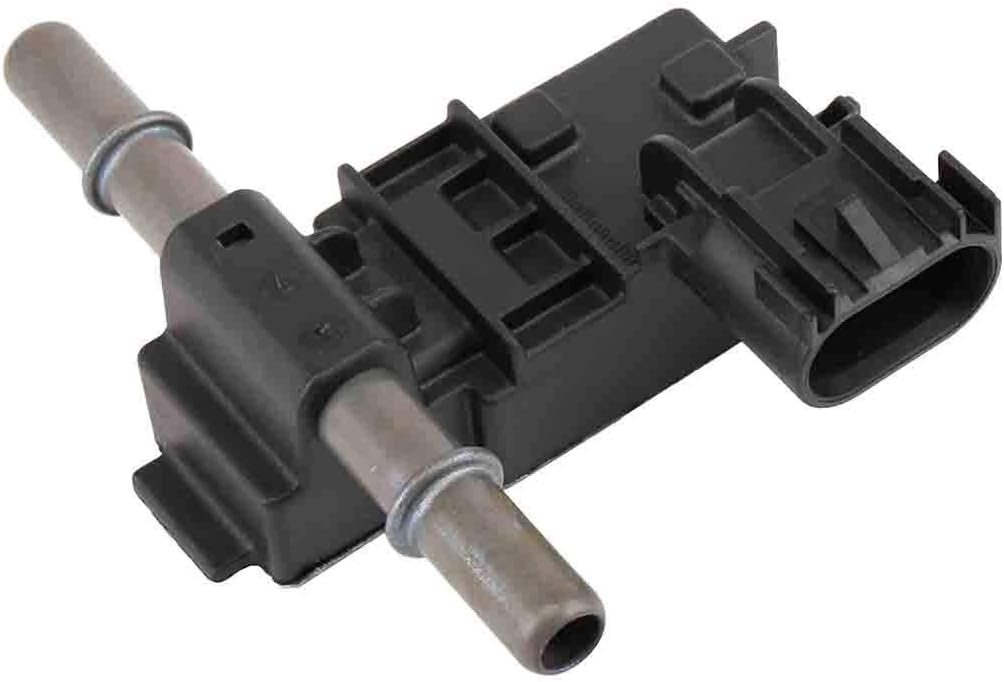

Continental · Sensor (Flex Fuel)
Ethanol Sensor 13577429 Pinout & Wiring
1 connector · full pinout below
Connectors

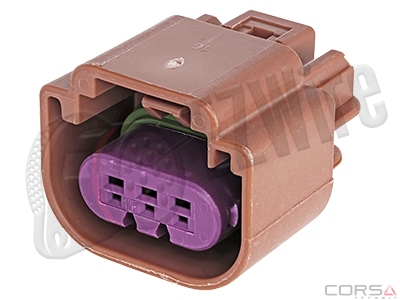

Corsa TechnicGT150.A-3S-2- 3-way
| Pin | Function |
|---|---|
| 1 | VCC - 12VDC |
| 2 | GND - Signal Ground |
| 3 | Vout - Sensor Output |
Always verify the pinout against the manufacturer datasheet before wiring.
Building a harness around the Ethanol Sensor 13577429?
The Continental Ethanol Sensor 13577429 is pre-loaded in EZ Wire with every connector and pin mapped - plus 90+ other devices. Start designing in minutes.
Get started from $18/mo
14-day money-back guarantee
Frequently asked questions
How many connectors does the Continental Ethanol Sensor 13577429 have?
The Continental Ethanol Sensor 13577429 has 1 connector: Ethanol sensor connection (3-way).
What is the Continental Ethanol Sensor 13577429 pinout?
The full cavity-by-cavity pinout for the Continental Ethanol Sensor 13577429 is listed on this page, and is pre-loaded in EZ Wire so you can import it into a harness in one click.
