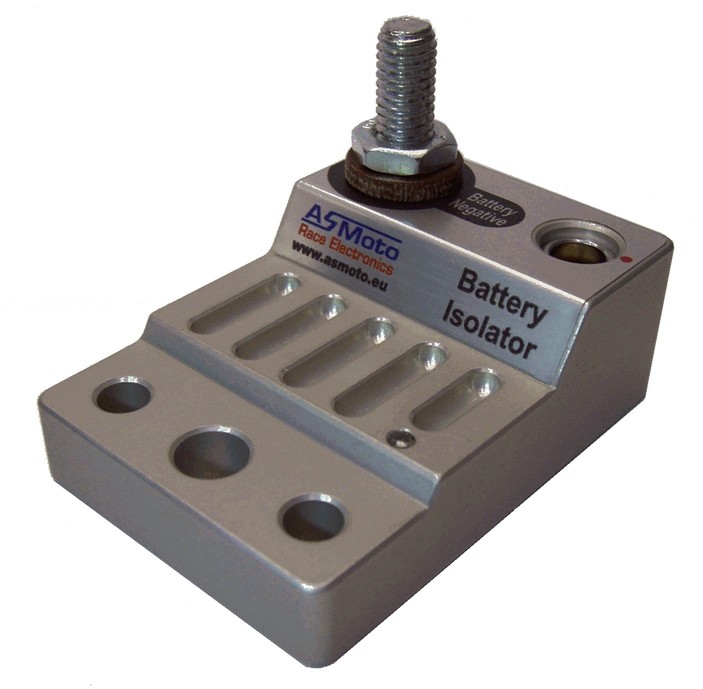

ASMoto Battery Isolator Pinout & Wiring
1 connector · full pinout below
Fully electronic, solid-state battery isolator for race cars. Provides a safe, spark-free negative-side disconnect with maximum vibration resistance.
Connectors
DeutschDTM06-6S- 6-way
| Pin | Function |
|---|---|
| 1 | + 12 V |
| 2 | Internal switch (Switch red wire) |
| 3 | Internal switch (Switch green wire) |
| 4 | Engine kill signal |
| 5 | Lin (for ASMoto PDM) |
| 6 | External switch |
Always verify the pinout against the manufacturer datasheet before wiring.
